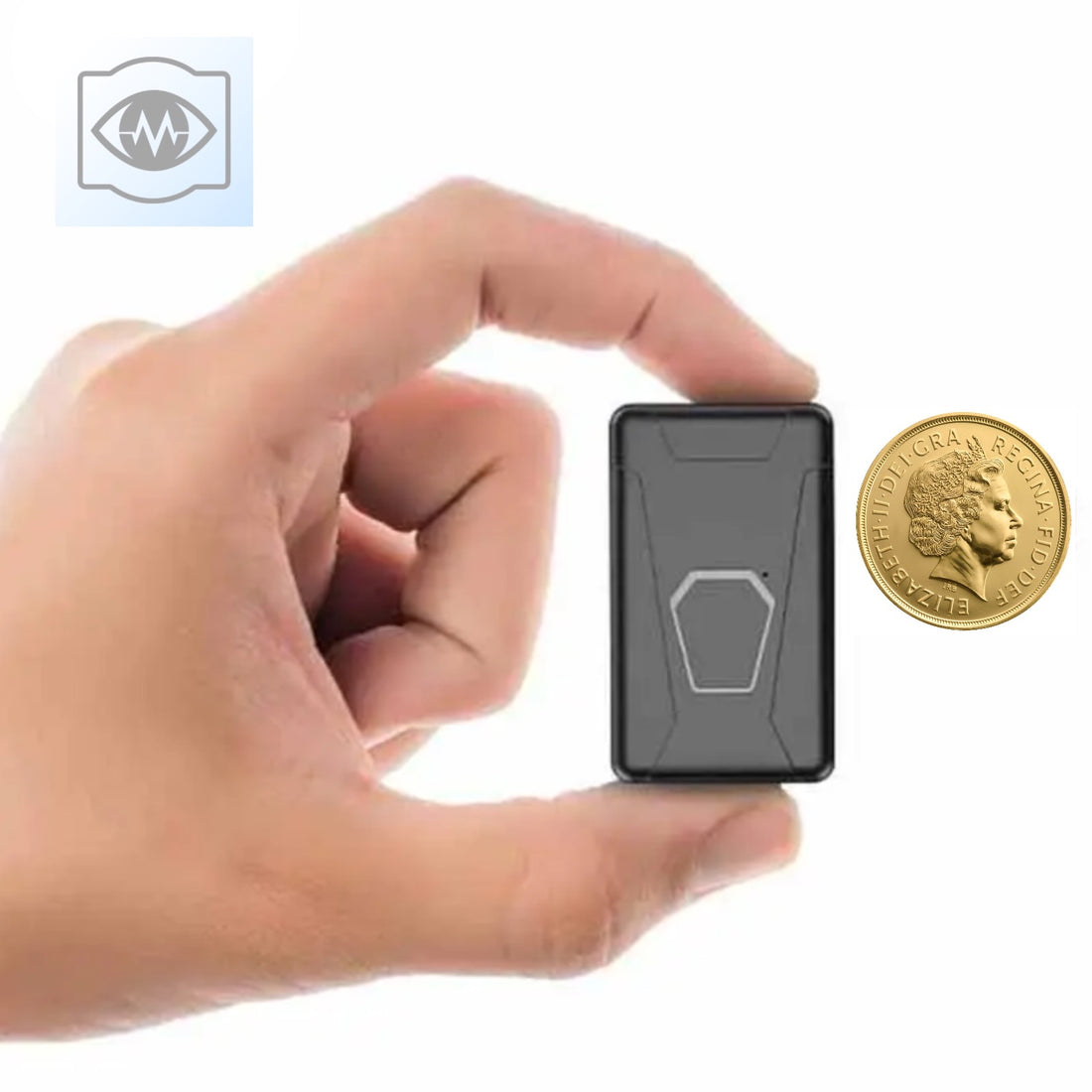

The PG10 Mini Magnetic GPS Tracker departs from the heavy, industrial designs of the LK209 & LK900 series to offer an ultra compact, covert solution. Weighing only 31 grams and measuring roughly the size of a small matchbox, it is designed for hidden placement inside vehicles, bags, or personal belongings.
Technical Specifications
-
Battery Capacity: 3.7V 800mAh rechargeable lithium polymer battery.
-
Positioning Accuracy: Satellite tracking precise to within 5 to 15 metres.
-
Hybrid Positioning: Automatically shifts between GPS satellite and LBS (Location Based Services) base tower tracking.
-
Network & Frequency: 2G GSM/GPRS Quad-band (850/900/1800/1900MHz). (Note: 2G remains fully active and supported across the UK and Europe until at least 2030).
-
Core Hardware: MTK6261 GSM module paired with an AT6558R high-sensitivity GPS chip (-159dBm).
-
Time To First Fix (TTFF): Cold status takes 45–120 seconds; Warm status takes 35 seconds; Hot status takes 1 second.
-
Casing Protection: IP65 dust and water-resistant casing.
-

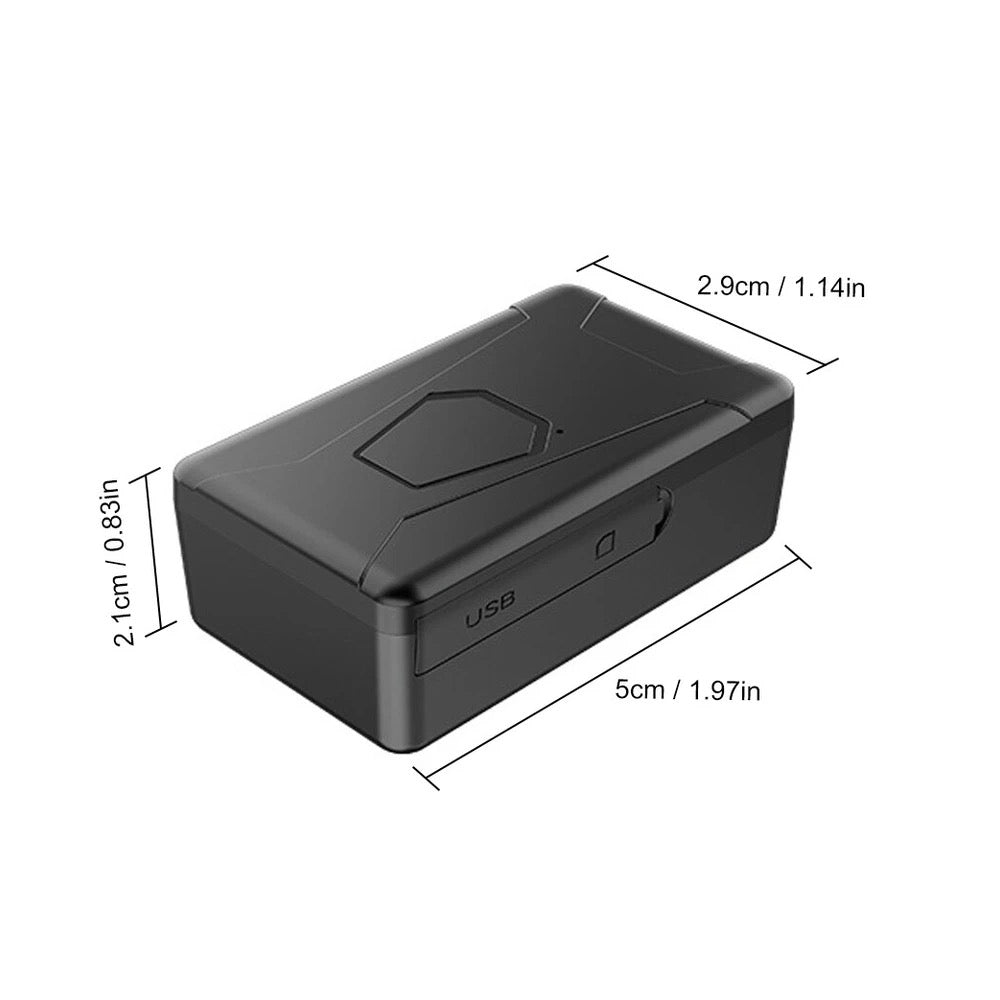

Dimensions: 50 mm × 29 mm × 21 mm.
-
Weight: 31 grams.
Battery Performance Life
Due to its lightweight 800mAh cell, battery life heavily relies on how frequently location tracking is requested.
-
Deep Sleep / Standby Mode: Up to 30 days (1 month) if the internal shake sensor puts the device to sleep when stationary.
-
Continuous Real-Time Tracking: 2 days (48 hours) of non-stop, live data uploads.
-
Average Daily Usage: 2 weeks (14 days) under standard conditions (e.g., active tracking for a few hours per day).
Core Security & Audio Features
-
Covert Audio Monitoring: Features a built-in high-sensitivity microphone. Users can silently dial into the device to listen to ambient cabin sound or set up voice-activated recording which automatically uploads audio to the cloud when sound exceeds 40 decibels.
-
Voice-Activated Callback: The tracker can be configured to automatically dial your phone number if it detects noise or conversations nearby.
-
Integrated Magnetic Mounting: Features a built-in permanent internal magnet, allowing it to snap instantly onto metal surfaces without external mounting kits.
-
Security Alerts: Sends instant smartphone push notifications or SMS alerts for low battery warnings (under 15%), over-speeding, vibration/shock, or geofence perimeter breaches.
-
App Platform: Pairs with subscription-free app GPSPOS. The app tracks historical routing logs for up to 6 months.
Functional Contrast: LK209 Series vs. PG10
| LK209 Series (A, B, C)
|
PG10 Tracker
|
|
Primary Design Intent
External vehicle chassis / Asset fleet tracking
|
Primary Design Intent
Covert deployment / Personal tracking / Spy audio
|
|
Physical Weight
Heavy (180g to 455g)
|
Physical Weight
Ultra-light (31 grams
|
|
Network Infrastructure
4G LTE with 2G/3G fallback
|
Network Infrastructure
Legacy 2G GSM/GPRS Only
|
|
Battery Life Scale
1 to 6 months of heavy active tracking
|
Battery Life Scale
2 days continuous to 2 weeks average tracking
|
|
Specialised Feature
Physical anti-tamper optical drop alert
|
Specialised Feature
Remote voice recording & callback listening |
