LK970 Global Band GPS Tracker 4G 120 Day Battery Magnetic GEO Fence Motion Speed Drop Alarm Notification

The Ultimate Global Tracking Solution

• Network Capability: 4G LTE-FDD / TDD data transmission with automated 3G WCDMA and 2G GSM fallback.
• Frequency Bands:
  • 4G LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20
  • 4G LTE-TDD: B38 / B39 / B40 / B41
  • 3G WCDMA: B1 / B5 / B8
  • 2G GSM: 900 / 1800 MHz
• SIM Card Requirement: Standard SIM card slot, requiring an active SMS/Data cellular plan.

• Tracking Modes: Triple hybrid positioning including GPS satellite tracking, Beidou satellite tracking, and LBS (cellular cell tower) triangulation.
• Location Accuracy: Within 5 to 10 metres under clear sky conditions.
• Tracking Sensitivity: -159 dBm
• Time To First Fix (TTFF):
  • Cold Start: 35 to 45 seconds
  • Warm Start: 35 seconds
  • Hot Start: 1 second

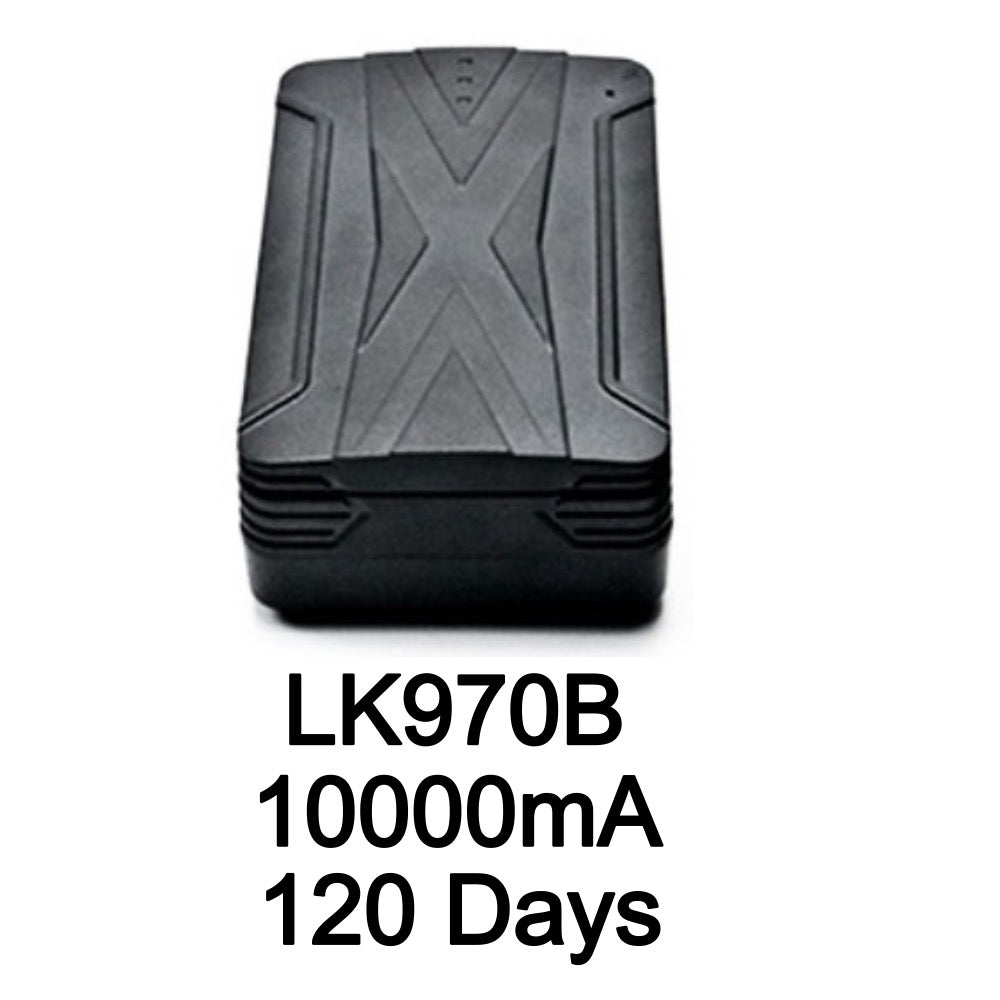

• Battery Specification: High-capacity 3.7V 10,000mAh Lithium-ion rechargeable battery.
• Maximum Standby Longevity: Up to 120 days under absolute power-saving parameters.
• Operational Battery Life:
  • High-Frequency Tracking: 15 to 20 days with continuous 10-second updates.
  • Interval Reporting: 45 to 60 days when configured to report location several times per day.
• Charging Parameters: 5V DC / 1.0A input via a protected Micro-USB charging port.

• Dimensions: 110 mm × 75 mm × 30 mm (noticeably deeper/thicker than the LK900A to house the larger cell).
• Weight: 300 grams
• Chassis Design: Heavy-duty, industrial-grade plastic housing.
• Weather Proofing: Dust-tight and splashproof shell engineered for external deployments under vehicle chassis.
• Mounting System: High-performance multi-point NdFeB (Neodymium) industrial magnetic base.
• Thermal Range: Operating safety zone of -20°C to +55°C.

• Anti-Removal Drop Alarm: Integrated optical light sensor on the magnetic face. It immediately triggers an SMS and app alert if the device is pulled away or falls off its mounting surface.
• Motion & Vibration Sensing: Built-in 3-axis accelerometer for instant wake-up from sleep and anti-tamper shock alerts.
• Telemetry Violations: Instant automated warnings for geo-fence border boundary breaches, vehicle over speeding limits, and low-power battery thresholds.
• Historical Memory Logging: Internal storage cache preserves data coordinates if the asset enters a cellular dead zone, uploading the route history immediately upon reconnecting to the network.

• Core Processor: Spreadtrum SC9820E telemetry chipset.
• SIM Interface: Nano SIM card slot.
• 4G LTE FDD Bands: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12(17) / B20 / B28
• 4G LTE TDD Bands: B38 / B39 / B40 / B41
• 3G WCDMA Bands: B1 / B5 / B8
• 2G GSM Frequencies: 900 / 1800 MHz

• Tracking Framework: Multi-system concurrent satellite tracking (GPS + GLONASS/Beidou) with automated LBS cell tower triangulation fallback.
• Channel Capacity: 66 tracking channels.
• Location Precision: Within 5 to 10 metres under clear, unobstructed sky conditions.
• Tracking Sensitivity: -165 dBm
• Time To First Fix (TTFF):
  • Cold Status: 35 to 80 seconds
  • Warm Status: 35 seconds
  • Hot Status: 1 second

• Anti-Theft Optical Sensor: Base-mounted light sensor that fires an immediate SMS or push alert to the owner if the unit is pulled off its magnetic anchor surface.
• Live Microphone Configuration: Built-in high-gain microphone supporting remote audio intercept capabilities via direct authorised incoming voice calls.
• Vibration Wake-Up: An integrated 3-axis G-sensor forces the device into a low-draw sleep mode after 5 minutes of stillness, waking it up instantly upon physical shock or movement.
• Telemetry Guard Alerts: Automated system warnings for geo-fence breaches, vehicle over speeding, displacement, and critical low-battery capacity.
• Blind Area Storage: Caches up to 90 days of route history coordinates internally during network dropouts, auto-uploading historical tracks to the cloud server once 4G service is re-established.
