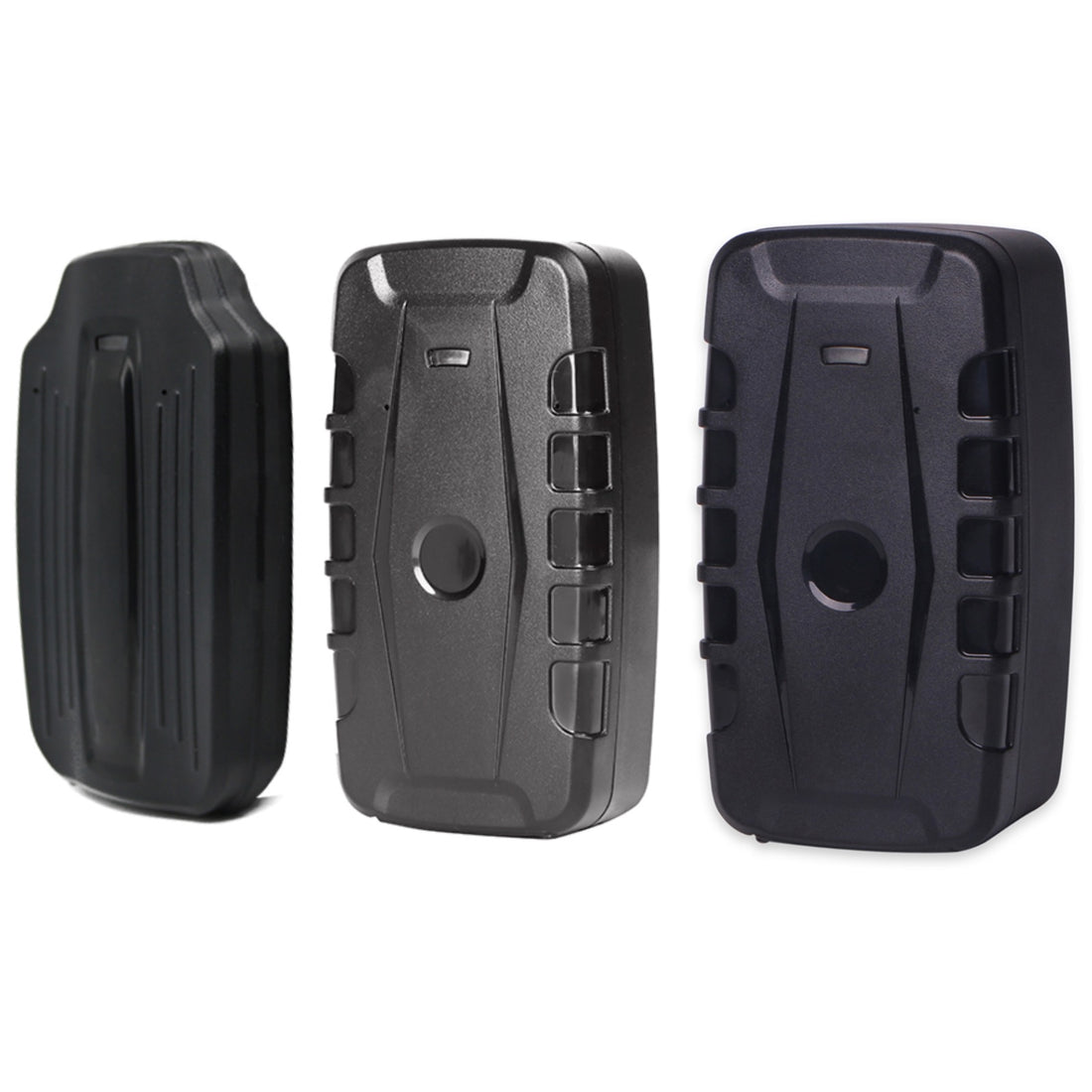

The LK900A, 900B & 900C 4G GPS trackers manufactured by LK-GPS is a professional grade, waterproof, magnetic asset and vehicle locator. Unlike the bicycle-tailored LK110, the LK900 series features a heavy-duty industrial magnet designed for instant "slap-on" mounting to vehicle chassis, shipping containers, or heavy machinery.

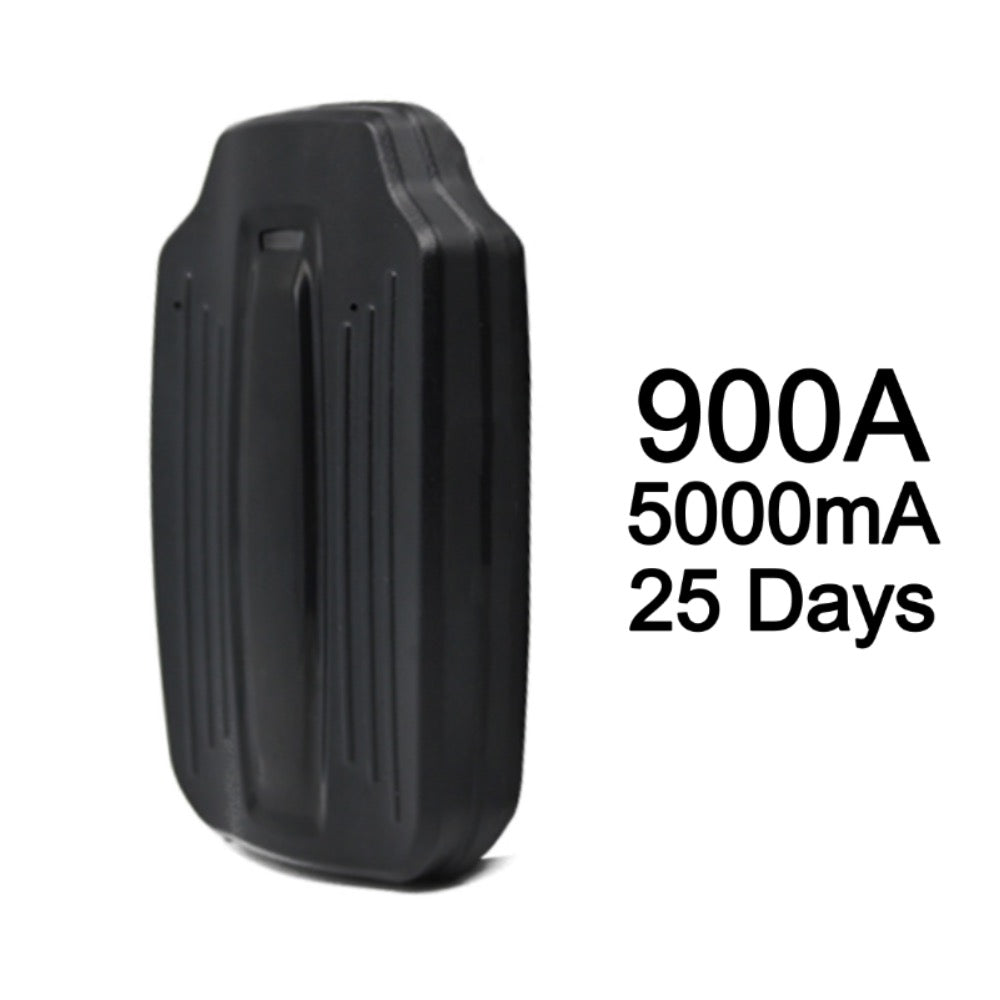

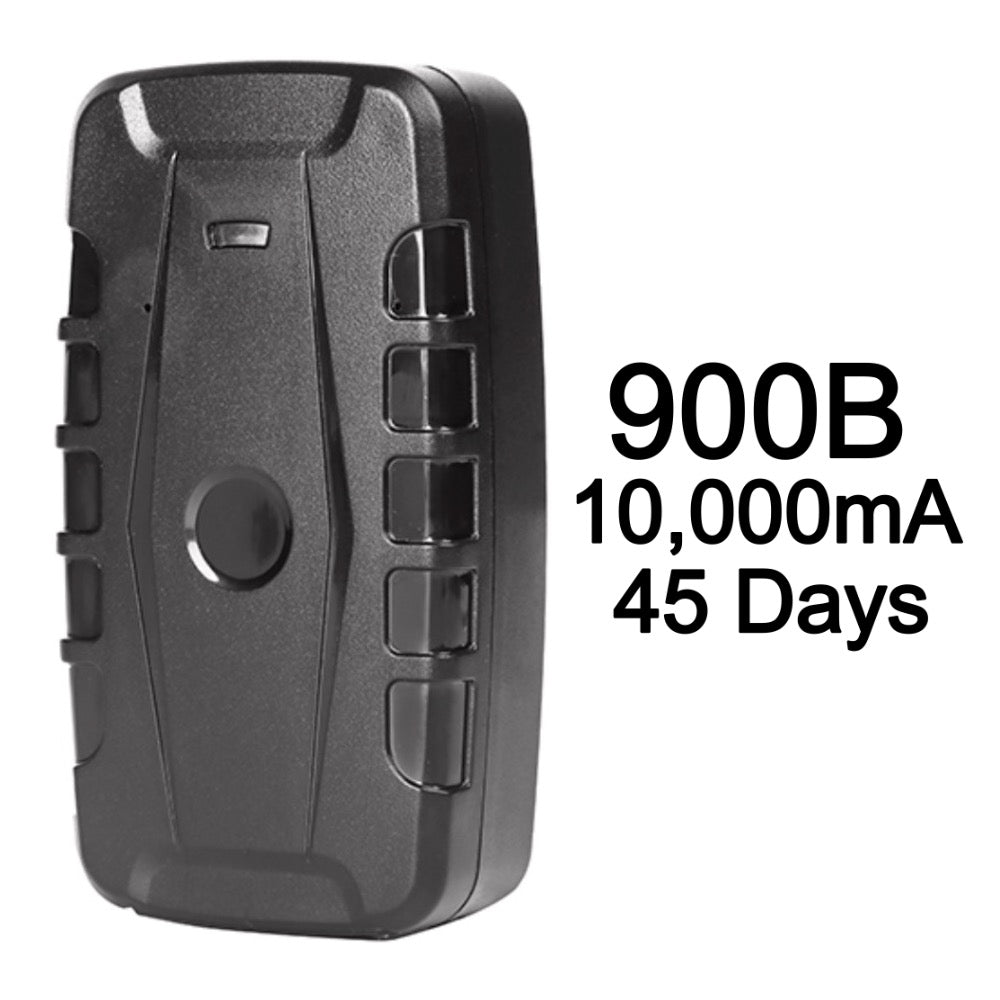

The LK900A represents the baseline battery capacity variant within the LK900 fleet tracking tier, which also includes the higher-capacity LK900B and LK900C iterations. The LK900A 5000mA battery lasts 10-25 days, LK900B 10000mA battery lasts 30-45 days and LK900C 20000mA battery lasts 85-110 days.
Core Technical Specifications
- Network Connectivity: Dual-mode 4G LTE (Cat 1) with 2G fallback ensures reliable cellular communication across changing network environments.
- Positioning System: Employs a triple-satellite constellation (GPS, GLONASS, and BeiDou) combined with LBS (Location Based Services) for high-accuracy tracking.
- Power Source: Built in rechargeable Lithium Polymer battery.
- Waterproofing: IP66 rated waterproof housing to withstand all weathers in exposed areas under vehicles and outdoors.
Key Security & Telemetry Features
- Comprehensive Instant Alerts:
- Geo-Fencing: Sends push notifications if the vehicle enters or exits a predefined geographic boundary.
- Vibration & Motion Sensors: Triggers an alarm if the stationary vehicle is bumped, towed, or tampered with.
- Overspeed Warning: Alerts fleet managers or owners if a set speed threshold is crossed.
- Tracking Platforms: Fully compatible with the official LKGPS2 app (iOS and Android), web portals, and popular third-party telemetry servers like Plaspy and Traccar. It can also be pinged directly via SMS to return standard Google Maps coordinates.
📡 Connectivity & Regional Network Versions
The modern global iteration relies heavily on 4G LTE-FDD/TDD protocols but retains backwards fallback compatibility.
-
Network Bands: LTE / WCDMA / GSM / GPRS
-
European / Asian / Middle East Networks:
-
4G LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20
-
4G LTE-TDD: B38 / B40 / B41
-
3G WCDMA: B1 / B2 / B5 / B8
-
2G GSM: 850 / 900 / 1800 / 1900 MHz
-
SIM card requirement: Standard full-sized SIM card slot (does not natively support Micro/Nano configurations without an adapter layout).
📍 GPS Tracking Parameters
-
Positioning System: Hybrid GPS + LBS (Location Based Services) dual tracking framework.
-
Accuracy Radius: Precision within 5 to 10 metres under open sky conditions.
-
Tracking Sensitivity: -159 dBm
-
Time To First Fix (TTFF):
-
Cold Status: 35 to 80 seconds
-
Warm Status: 35 seconds
-
Hot Status: 1 second
🔋 Power Architecture & Lifespan
-
Battery Capacity: Built-in 3.7V 6000mAh Lithium-ion rechargeable cell. (Note: The LK900B uses a 10,000mAh battery, and the LK900C upgrades to a 20,000mAh variant).
-
Active Standby Time: Up to 110 days under low-power network parameters.
-
Active Transmission Profiles: Engineering profiles allow active tracking anywhere from 25 days to 110 days based on smart deep-sleep reporting schedules.
-
Power Input: Micro-USB charging via standard 110V–220V wall adapters outputting 5V DC.
📐 Mechanical & Structural Build
-
Dimensions: 115 mm × 65 mm × 25 mm
-
Weight: 175 grams
-
Enclosure: IP66 Rated rugged, weather-resistant and splash proof chassis engineered for exterior vehicle environments.
-
Thermal Endurance: Operating thresholds span -20°C to +55°C; storage safety ratings range from -40°C to +85°C.
-
Mounting Setup: Embedded high-strength structural rear magnet array.
⚙️ Firmware Utilities & Hardware
-
Audio Intercept Capability: Features a live microphone configuration. Users can execute remote telephone calls straight into the device terminal to safely monitor live surrounding environments. (Note: Manufacturer limits specify this voice feature is omitted on targeted North American versions).
-
Anti-Tamper Light Sensor: Built-in optical drop-alarm sensor triggering instant notifications if the tracker is forcibly separated or detached from its magnetic mounting surface.
-
Telemetry Protection Alerts: Emits cellular alerts for sudden chassis vibrations/shocks, designated geo-fencing border breaches, excessive vehicle over speeding and critical low-battery power thresholds.
- System Logging Memory: Integrated internal memory allows history tracking trace-replays and route storage for up to 90 days during periods of cellular blackouts (blind area tracking).

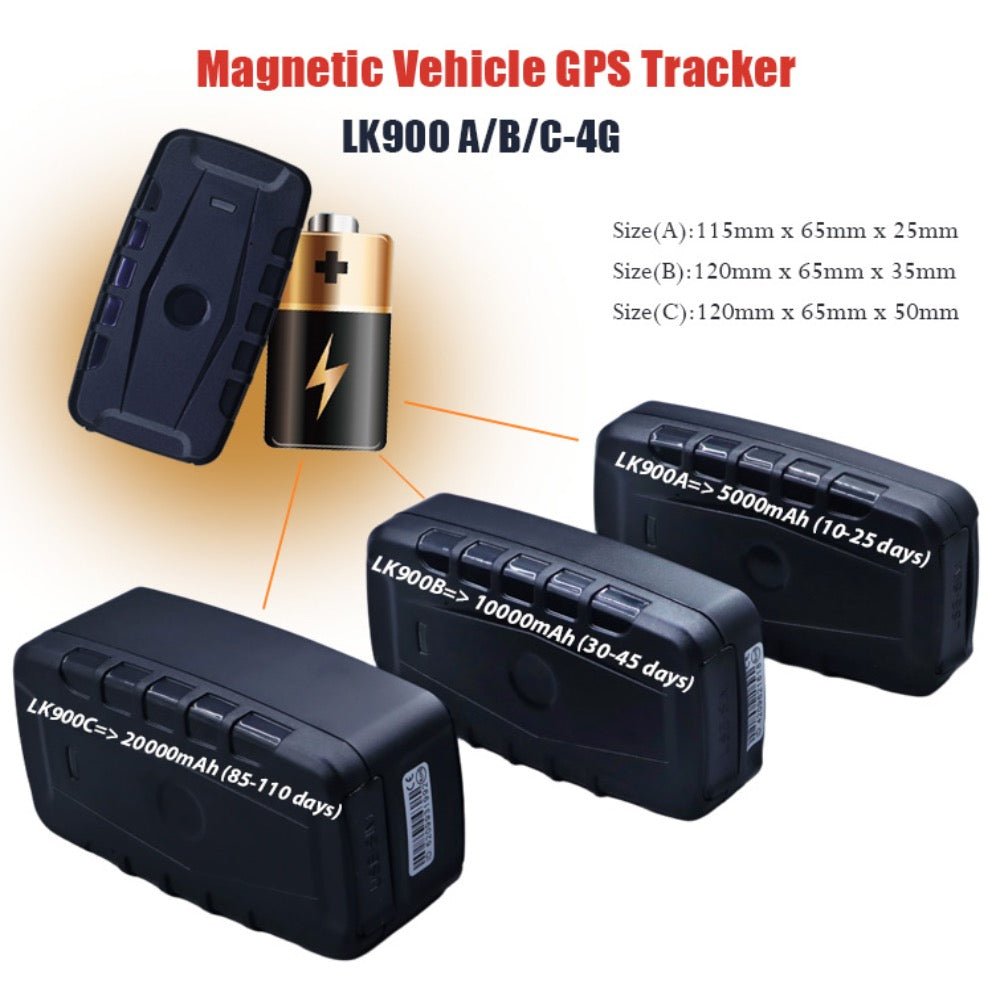

Quick Comparison: The L900 4G Family Spectrum
| Feature
|
LK900A (Compact)
|
LK900B (Standard)
|
LK900C (Ultra)
|
|
Battery Capacity
|
5,000 mAh
|
10,000 mAh
|
20,000 mAh
|
|
Device Thickness
|
32.5 mm
|
35.0 mm
|
50.0 mm
|
|
Device Weight
|
180 grams
|
295 grams
|
455 grams
|
|
Real-World Battery
|
1 to 2 months
|
2 to 3 months
|
4 to 6 months |
