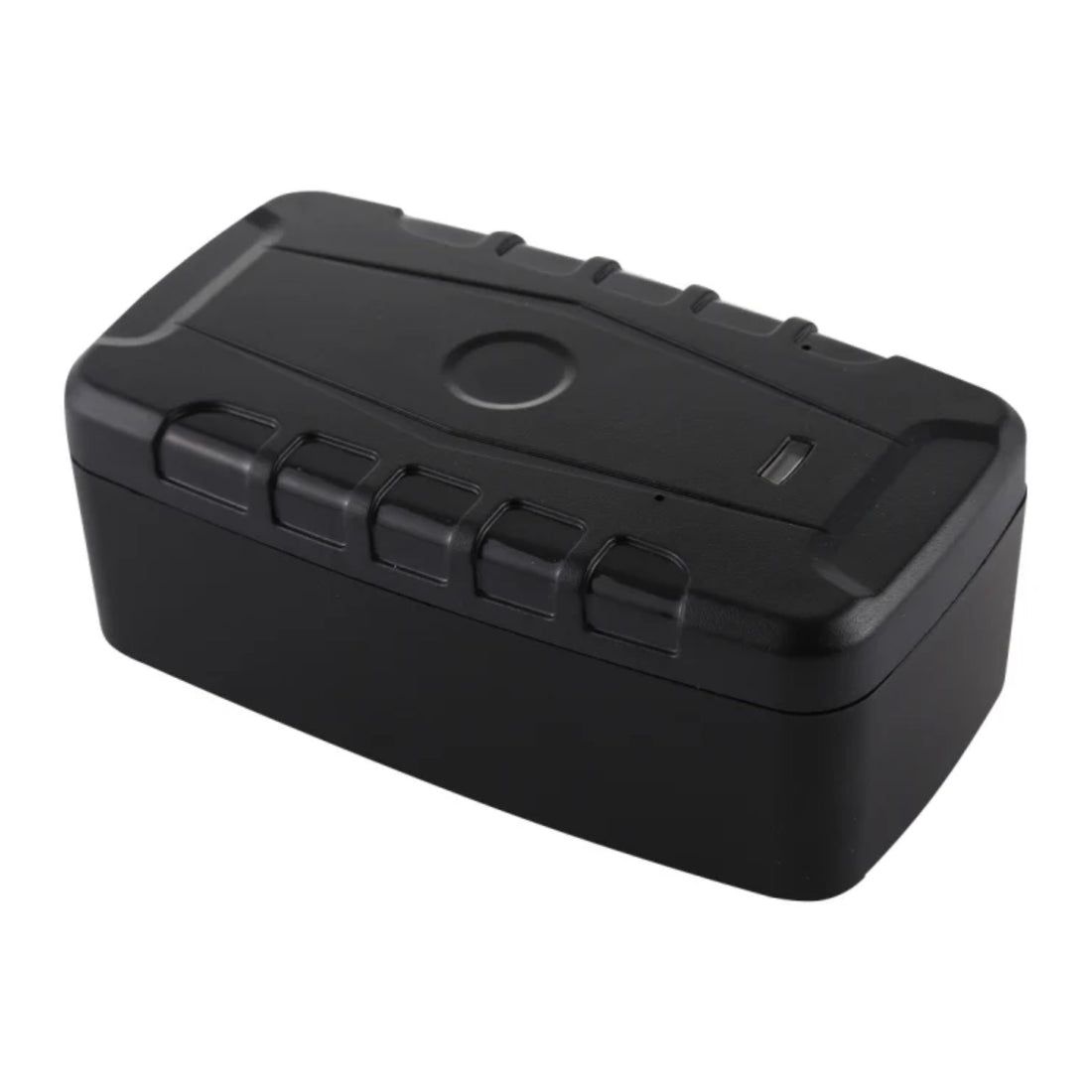

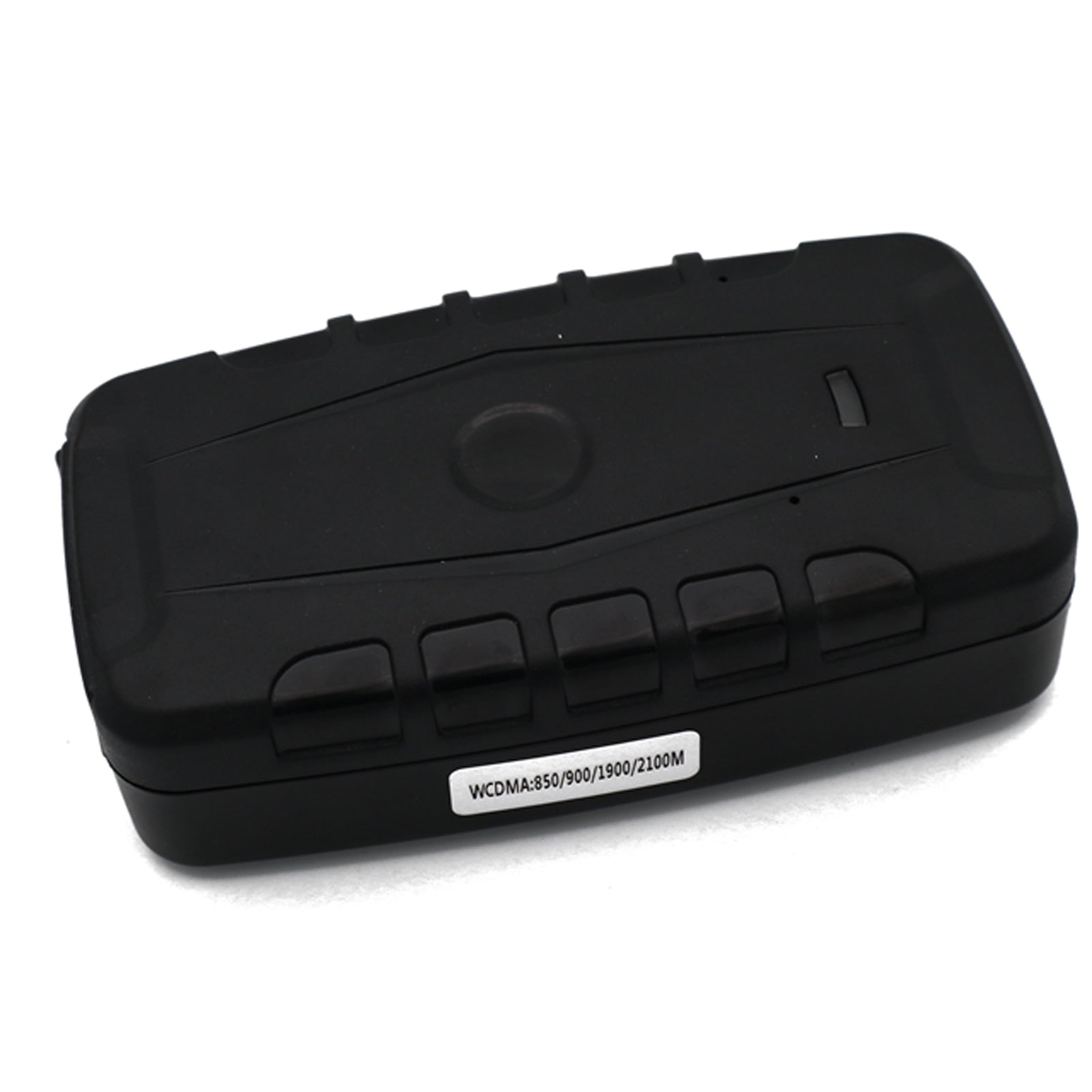

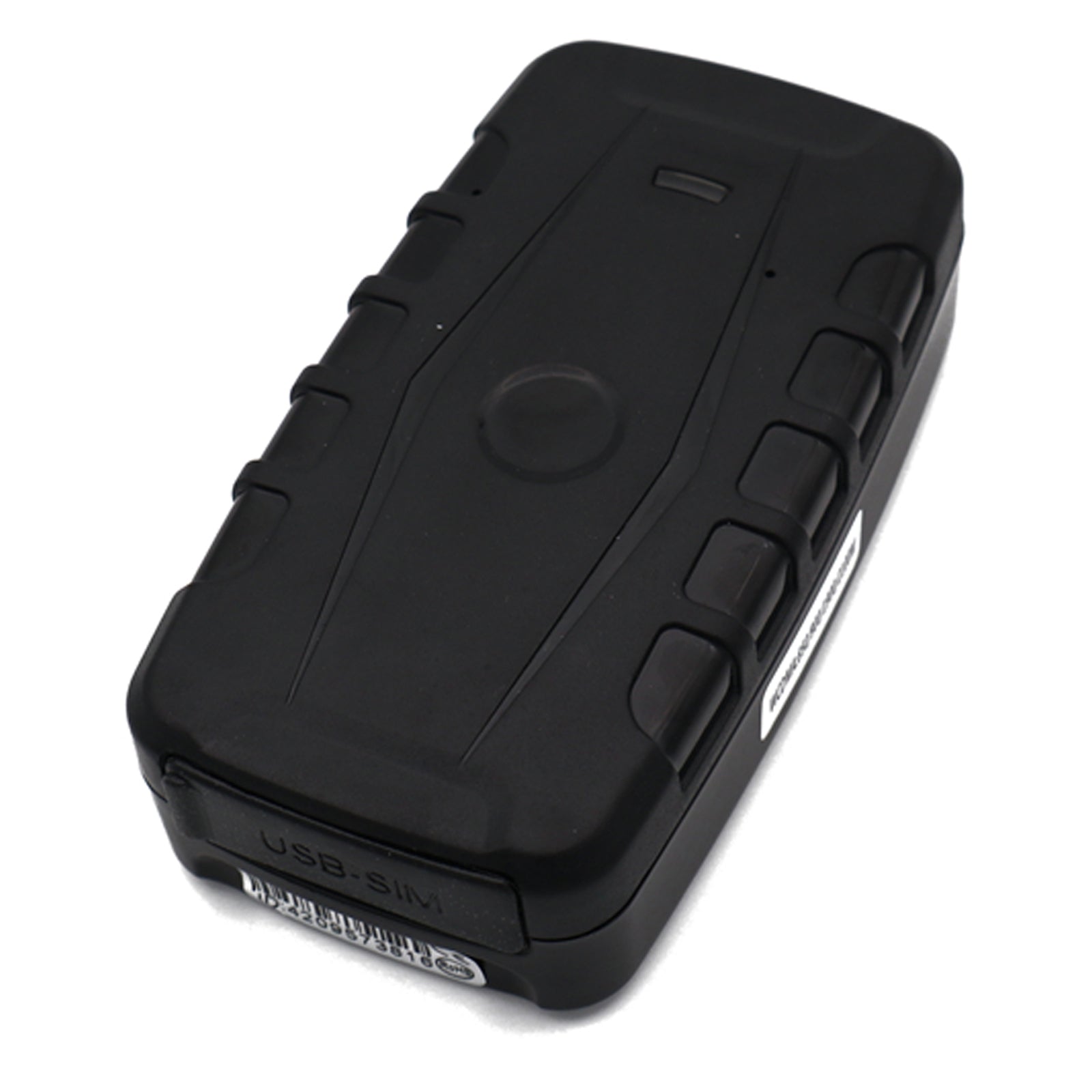

The LK209C GPS Tracker is the largest, most heavy-duty model in the LK209 series. Its standout feature is an ultra-high capacity 20,000mAh battery, engineered specifically for long-term industrial deployments, shipping containers, and heavy machinery asset tracking where recharging access is absent for months at a time. Like the rest of the family, it features modern 4G LTE network connectivity with 3G/2G fallback to ensure global coverage.
Technical Specifications
-
Battery Capacity: 3.7V 20,000mAh rechargeable Li-ion battery.
-
Positioning Accuracy: Satellite tracking accurate within a 5-metre radius.
-
Hybrid Positioning: Automatically drops down to LBS (Location Based Services) or local Wi-Fi hotspots when GPS signals are blocked by dense concrete or tunnels.
-
Network Bands: Global 4G LTE bands with full backward compatibility for legacy 3G and 2G bands.
-
GPS Hardware: High-sensitivity UBLOX chip (-159dBm tracking sensitivity).
-
Time To First Fix (TTFF): Cold status takes 35–80 seconds; Warm status takes 35 seconds; Hot status takes 1 second.
-
Casing Protection: IP67 waterproof rating, heavily sealed against high-pressure water spray, mud, and dust exposure.
-
Dimensions: 120 mm × 65 mm × 50 mm (the same length/width as the LK209B, but notably thicker to accommodate the double-stacked battery cells).
-
Weight: 455 grams (nearly half a kilogram).
Battery Performance Life
The device maximises its extended capacity by dropping into a zero-data deep sleep state when an internal 3D accelerometer senses the vehicle has stopped moving:
[1]
-
Deep Sleep Standby Mode: Up to 240 days (approx. 8 months) on a single charge.
-
Continuous Active Tracking: Up to 60 days of non-stop, 24/7 high-frequency location data transmission.
-
Real-World Average Usage: 4 to 6 months under typical fleet or daily commuter driving schedules.
Core Security & Alert Features
-
Reinforced Magnetic Array: Equipped with a stronger array of internal permanent magnets firmly secure its heavier 455g chassis to steel frames or shipping containers.
-
Anti-Tamper Light Sensor: Built-in optical sensor on the base instantly fires off an emergency app notification or SMS if the tracker is detached or dropped.
-
Instant Shock Alerts: Vibration sensors detect if the vehicle is being tampered with, broken into, or towed away while parked.
-
Geofencing: Allows users to draw multiple safe zones on a map, broadcasting instant notifications if the asset breaches those lines.
-
Cabin Audio Monitoring: Features a built-in microphone that lets you call the tracker secretly to listen to surrounding atmospheric or cabin audio.
-
Software Ecosystem: Operates via the subscription-free AKSH or LKGPS2 mobile apps and desktop portals, saving up to 180 days of detailed historical routes, mileage, and idling reports.
Quick Comparison: The LK209 Family Spectrum
| Feature
|
LK209A (Compact)
|
LK209B (Standard)
|
LK209C (Ultra)
|
|
Battery Capacity
|
6,000 mAh
|
10,000 mAh
|
20,000 mAh
|
|
Device Thickness
|
32.5 mm
|
35.0 mm
|
50.0 mm
|
|
Device Weight
|
180 grams
|
295 grams
|
455 grams
|
|
Real-World Battery
|
1 to 2 months
|
2 to 3 months
|
4 to 6 months |
