Kimafun KM-U208A UHF Wireless XLR Dynamic Microphone Transmitter Receiver System

Wireless XLR Condenser Mic System with Transmitter & Receiver

Kimafun KM-U208A UHF Wireless XLR Dynamic Microphone Transmitter Receiver System

Name: Kimafun KM-U208A UHF Wireless XLR Dynamic Microphone Transmitter Receiver System
Brand: Micronic Microphones
SKU: KM-U208A Dyn
Price: 89.99 GBP
Availability: InStock

UHF wireless system

Stable signal transmission

Transmitter receiver kit

are viewing this product

£89.99 GBP

Free UK Shipping

30 days Easy Returns

DESCRIPTION

Elevate your audio setup by converting any traditional wired microphone into a high-performance wireless system. Utilizing professional-grade UHF technology and digital audio transmission, this system delivers recording-level fidelity with an ultra-short delay, ensuring your favorite dynamic or condenser microphones perform at their peak without the constraints of cables.

Key Technical Specifications

Audio Quality: 48KHz sampling frequency for crystal-clear, professional sound reproduction.
Frequency Management: Pre-set with 16 adjustable channel groups to proactively eliminate signal interference.
Pairing Technology: Features infrared automatic matching for seamless, "plug and play" synchronization upon startup.
Latency: Optimized for ultra-short audio delay, ideal for live performance and recording.

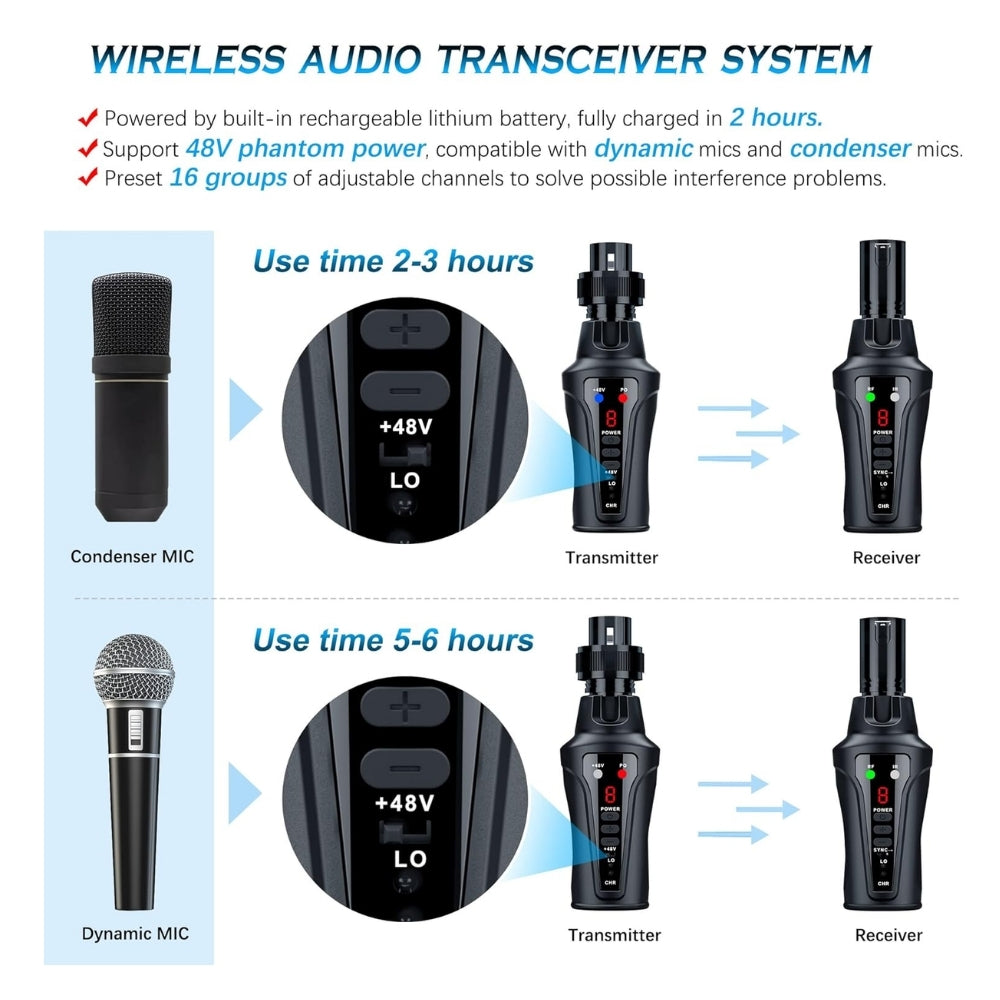

Power & Phantom Support

This versatile system is uniquely designed to support both dynamic and condenser microphones via a switchable 48V Phantom Power supply.

Microphone Type	48V Setting	Battery Life
Dynamic Handheld	OFF	5–6 Hours
Lavalier Condenser	ON	2–3 Hours

Note: Actual battery performance may vary based on the specific power draw of your microphone.

Range & Robust Hardware

Designed for reliability in demanding environments, the system features a compact, exquisite form factor with professional hardware safeguards.

Detachable Dual Antennas: * Without Antennas: Up to 20m (65ft) range.
- With Antennas: Up to 50m (165ft) range.
Secure Connection: The transmitter utilizes a lock design XLR plug, preventing accidental disconnections during active use.
Comprehensive Monitoring: Built-in LED indicators for Power, 48V Phantom status, Low Voltage, and Charging status keep you informed of your system’s health.

Compatibility & Deployment

The receiver is engineered for universal connectivity, featuring both XLR male and 1/4" (6.35mm) male plugs. This dual-output design allows for immediate integration with mixers, amplifiers, PA speakers, and audio interfaces.

Multi-System Support: Up to 5 systems can be operated simultaneously in the same venue without cross-talk.
Rechargeable Power: Powered by an internal lithium battery; a full charge is achieved in just 2 hours.
Versatile Applications: Perfectly suited for recording studios, theaters, public speaking, outdoor events, weddings, and mobile DJ sets.

SPECIFICATIONS

Transmitter Specifications (TX)

The transmitter is built for durability and flexibility, featuring a locking XLR input to ensure secure connections during active use.

Frequency Range: 606–614 MHz
Channel Capacity: 16 Selectable Channels
RF Output Power: 10mW
Frequency Deviation: $\pm 48\text{ kHz}$
Input Interface: 3-Pin XLR Female (with integrated safety lock)
Phantom Power: +48V (Switchable for condenser microphones)
User Controls: * Power Toggle (On/Off)48V Phantom Power Toggle (On/Off)
Visual Indicators: Multi-function LED (Power, 48V Active, Low Battery, Charging)
Antenna System: 1/4 Wavelength
Power Source: Internal 3.7V Lithium Battery
Operational Endurance: Up to 5 Hours
Form Factor: 120mm x 41mm x 31mm

Receiver Specifications (RX)

The receiver ensures signal integrity with advanced digital modulation and dual-output options for compatibility with mixers, speakers, and interfaces.

Frequency Range: 606–614 MHz (Matches Transmitter)
Modulation Scheme: $\pi/4 \text{ DQPSK}$ (Differential Quadrature Phase Shift Keying)
Output Interfaces: 3-Pin XLR Male and 6.35mm (1/4") Jack
Audio Latency: < 6ms (Ultra-low transmission delay)
Digital Sampling Rate: 48 KHz
Frequency Response: 60Hz–15Khz ($\pm 2\text{dB}$)
Total Harmonic Distortion (THD): < 0.8% @ 1KHz
Antenna System: 1/4 Wavelength
Power Source: Internal 3.7V Lithium Battery
Operational Endurance: Up to 6 Hours
Form Factor: 116mm x 41mm x 31mm

Key Performance Highlights

High-Fidelity Audio: The 48 KHz sampling rate ensures studio-quality sound reproduction across the frequency spectrum.
Professional Reliability: The UHF band (606–614 MHz) provides a stable connection with reduced interference compared to standard 2.4 GHz systems.
Versatile Powering: Built-in 48V phantom power allows for the direct use of high-end condenser microphones without external power supplies.
Compact Portability: Sleek, lightweight dimensions make it an unobtrusive addition to any microphone setup.

SHIPPING & RETURN

Orders are processed and shipped promptly. Returns accepted within 30 days if unused and in original condition. Faulty items can be returned within 60 days for exchange or refund. All products include a 12-month manufacturer warranty.

Understanding XLR Phantom Power in Audio Systems

XLR phantom power is a standard method used to supply power to condenser microphones through the same XLR cable that carries the audio signal. Typically delivered at 48 volts, it allows microphones to operate without needing separate batteries or external power sources. This makes setups cleaner, more reliable, and ideal for professional environments like studios, live performances, and broadcasting.

Why Phantom Power Matters for Sound Quality

Phantom power is essential for condenser microphones because it powers the internal electronics that capture detailed and sensitive audio. Without it, these microphones simply won’t function. It also ensures consistent performance, delivering clear, low-noise sound with better frequency response compared to unpowered setups.

Frequently Asked Questions

What type of microphone does it support?

It supports dynamic microphones.

Is it wireless?

Yes, it operates using UHF wireless technology.

What devices can it connect to?

Mixers, amplifiers, and PA systems via XLR.

What is the transmission range?

Up to approximately 30–50 meters.

Is it easy to set up?

Yes, it is plug-and-play.

Can it be used for live events?

Yes, it is suitable for stage and live use.
