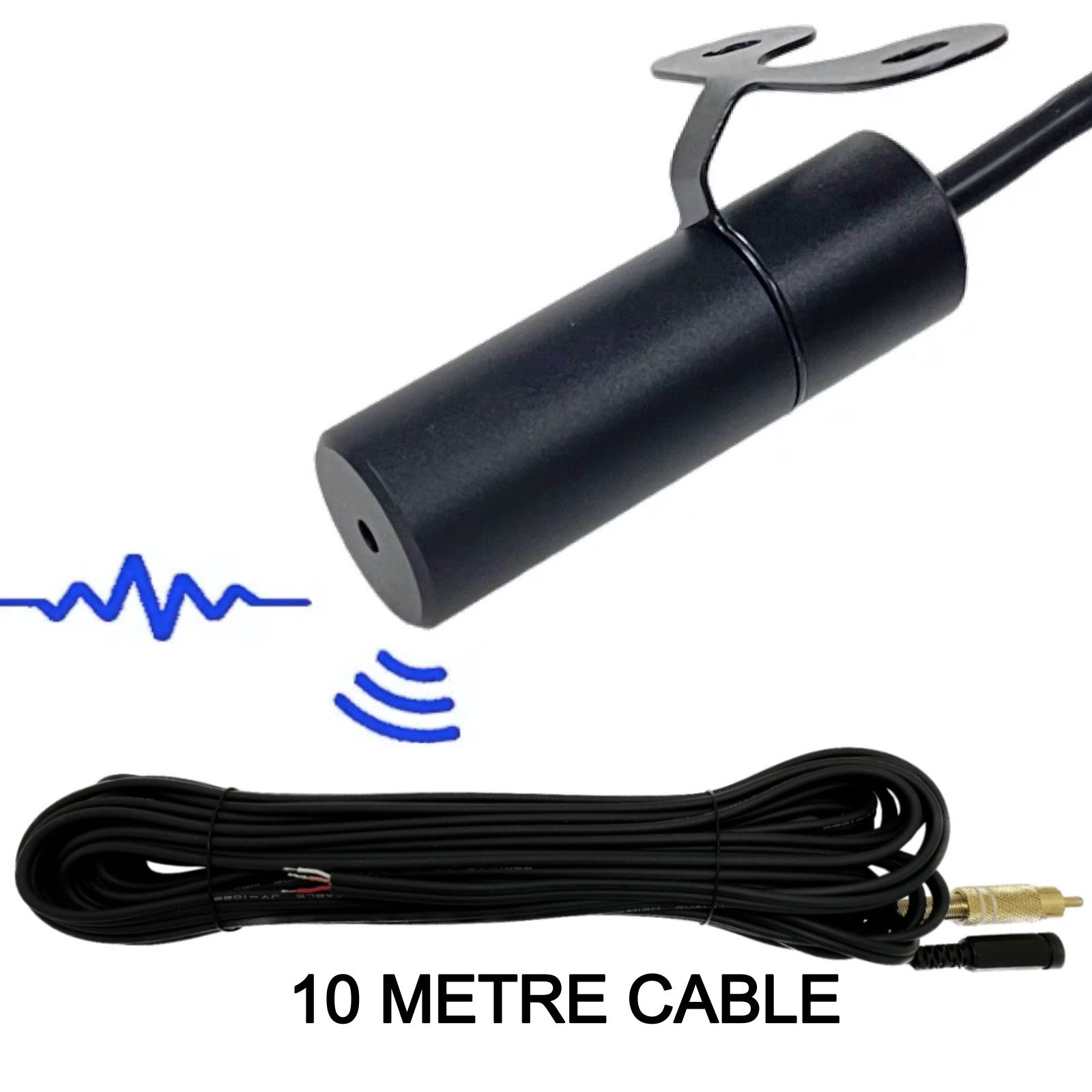

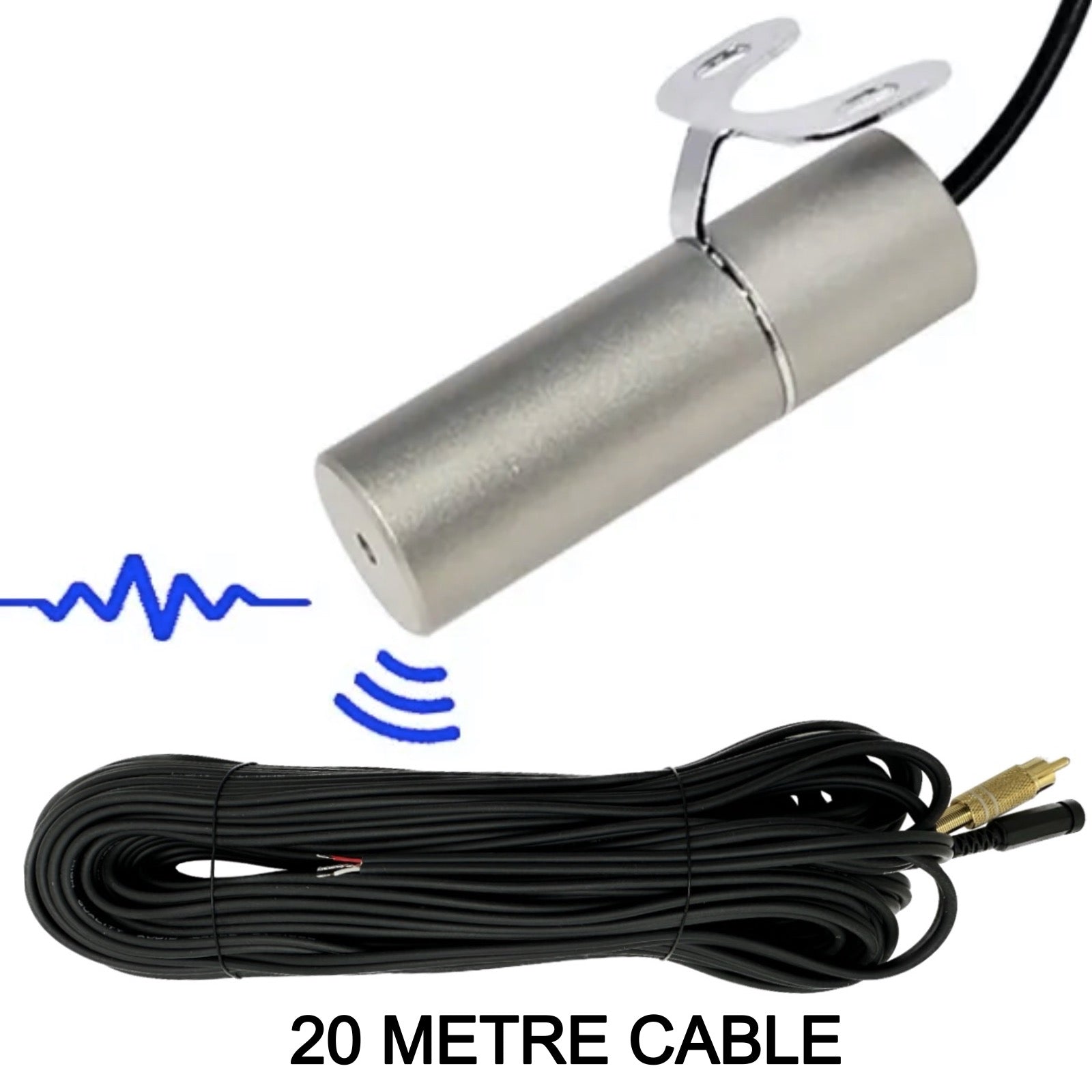

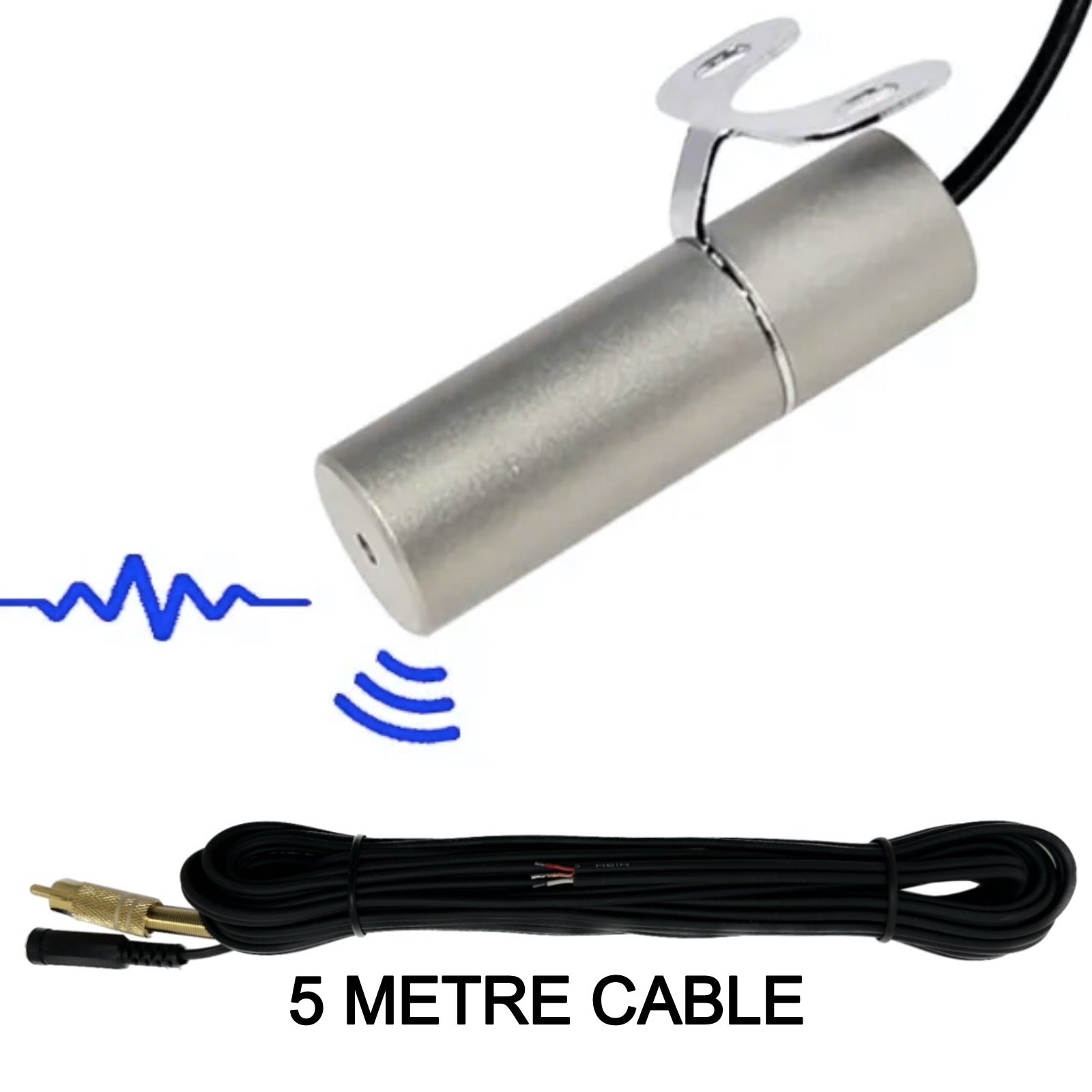

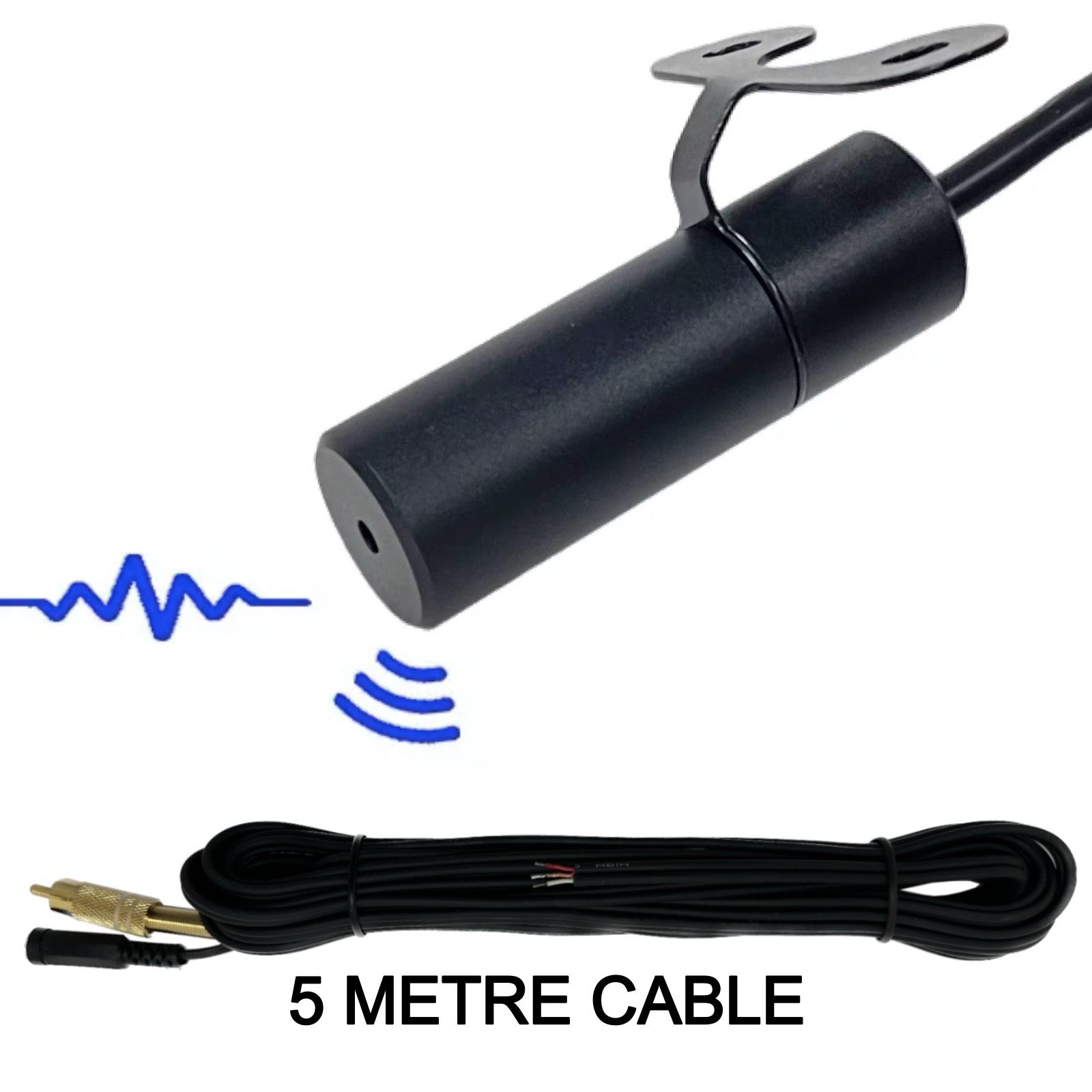

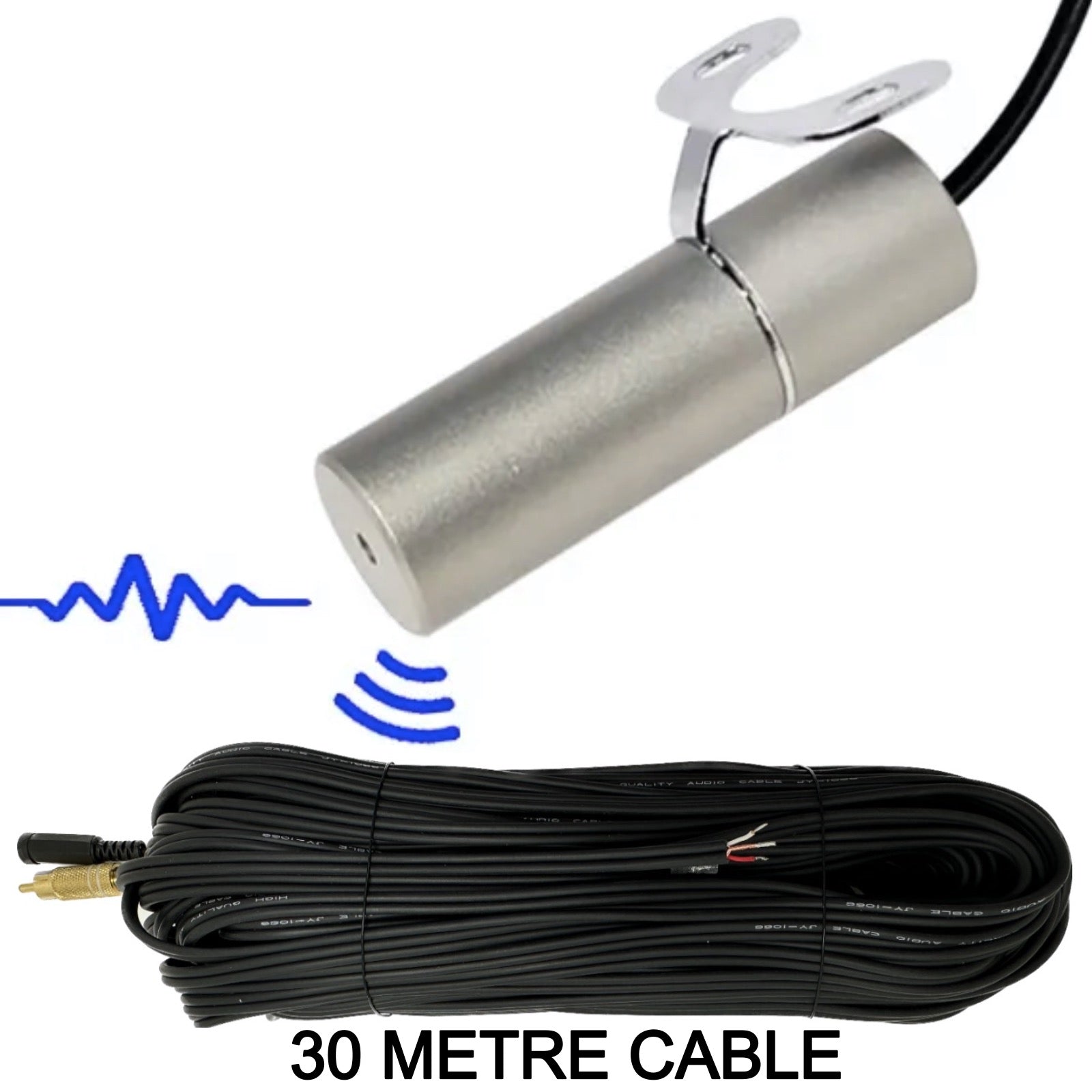

IP66 Rated Water Proof Microphone for CCTV Camera Solid Metal housing 6-12V DC input RCA Phono Output
- Regular price
- £23.99
This CCTV microphone is the only true IP66 outdoor all weather waterproof CCTV microphone. IP66 rated is protected against multi directional high pressure water jets. To pass IP66 testing the microphone must be able to withstand water projected from 0.5 inch nozzle, multi-directional high pressure jets. Withstands temperature down to -26º and up to +70º tested in extreme conditions for over 12 months.

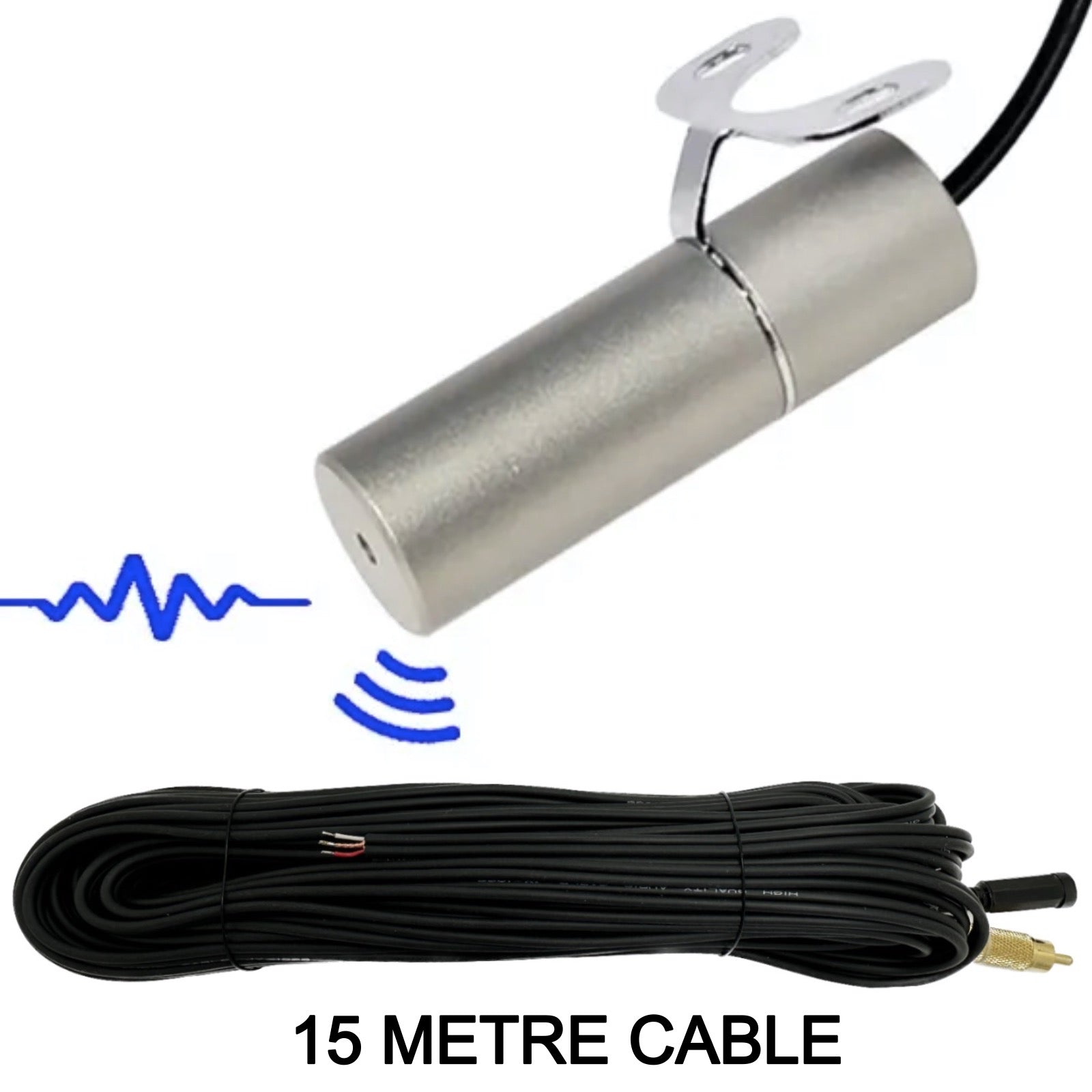

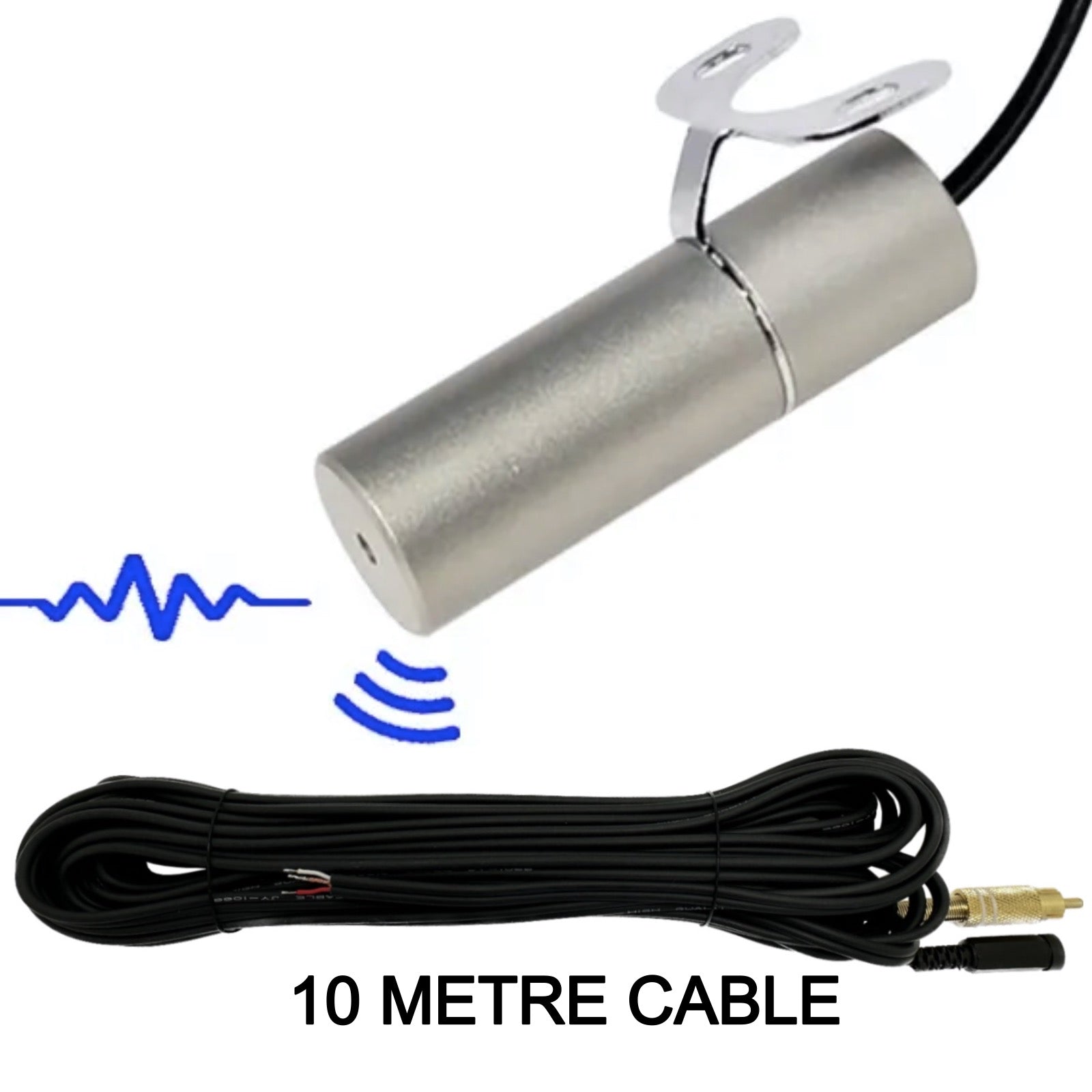

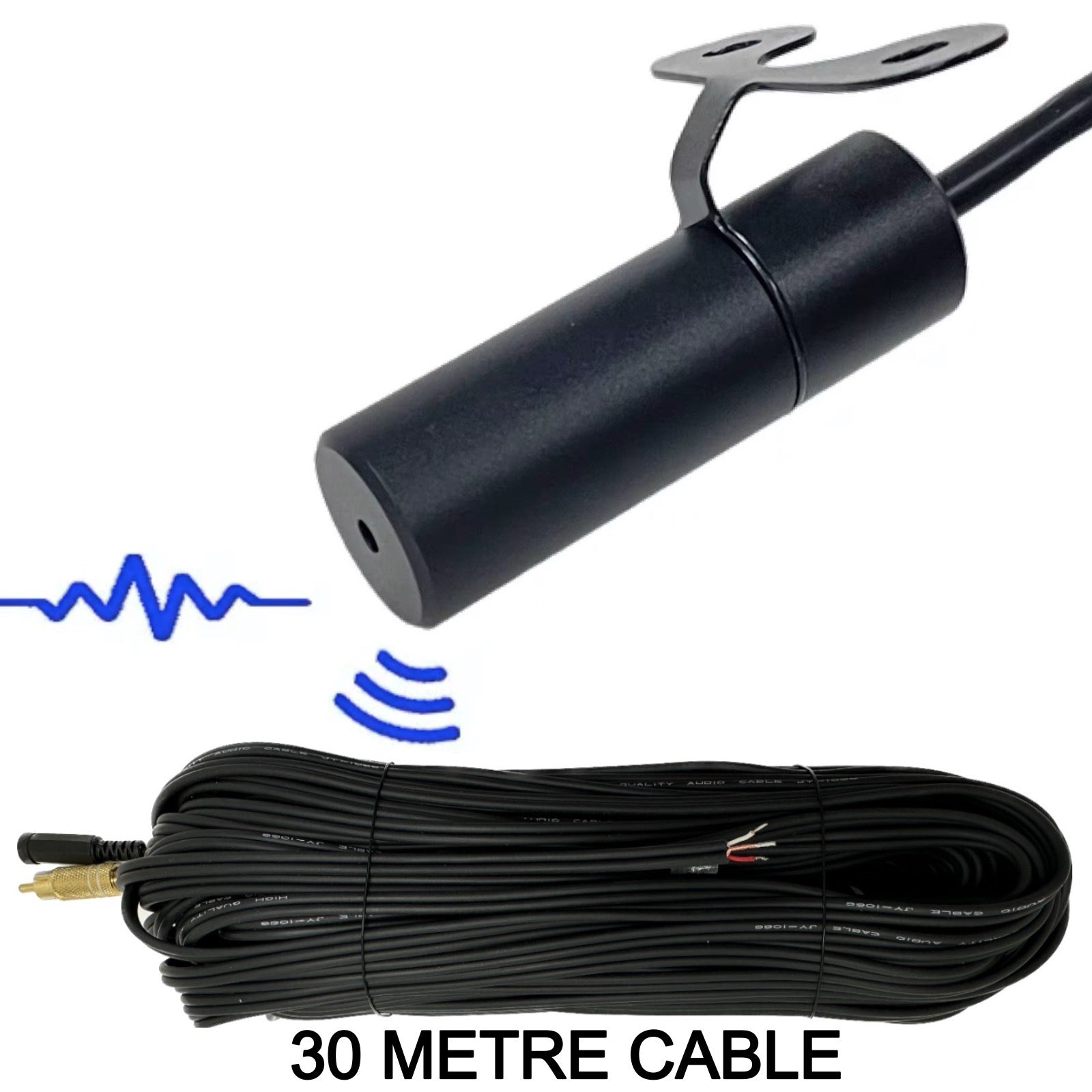

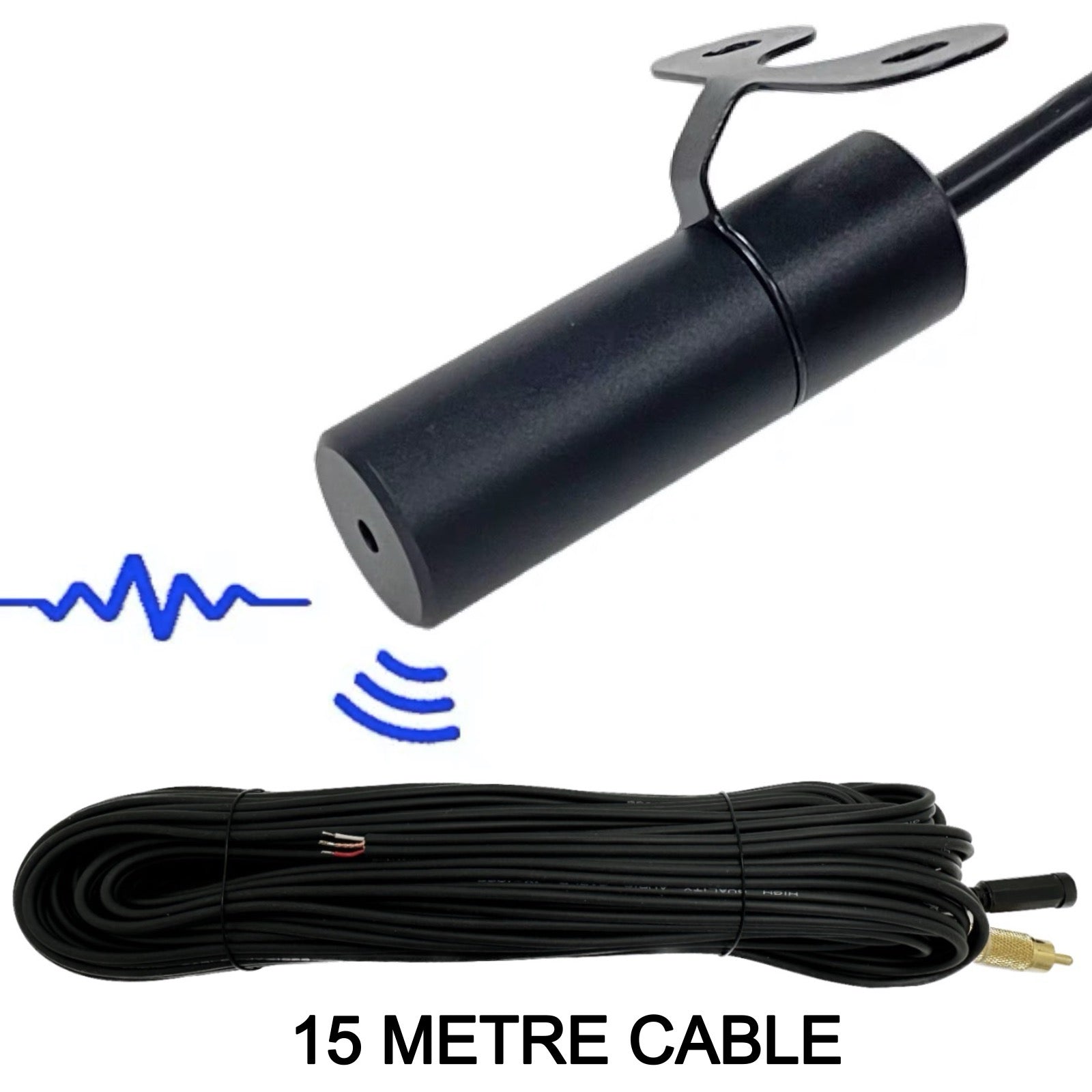

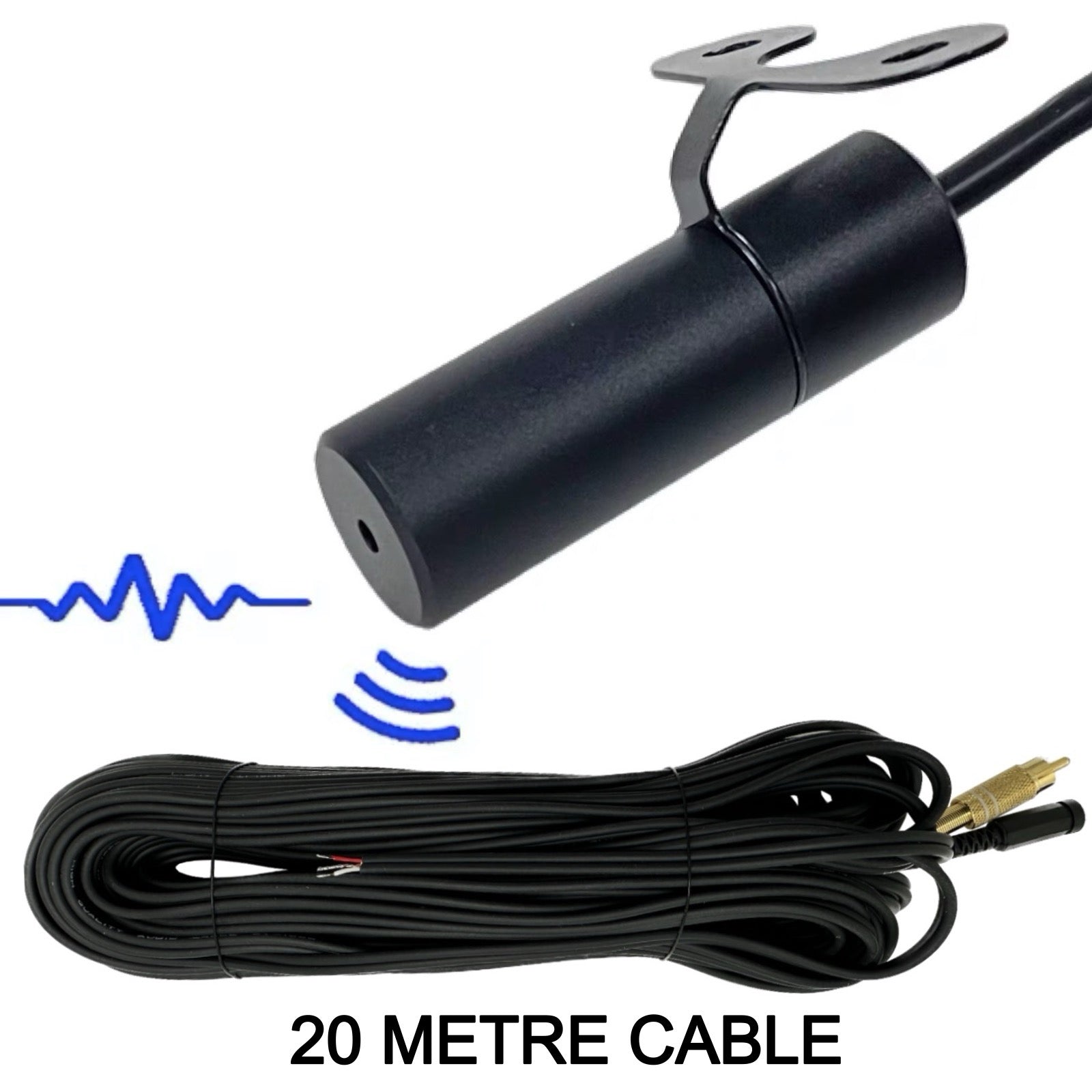

Built in pre-amp with 30cm - 30 metre audio/power connecting cable. Cable is sealed and fixed and not detachable from microphone. Microphone is 1.8cm diameter and 8cm in length. The aluminium casing does not reduce microphone sensitivity. The microphone pre-amp and cable is waterproof for mounting outdoors without worry of water damage. Guaranteed to outlast CCTV microphone without IP66 rating or protection. Withstands all weathers lasting years without interruption.

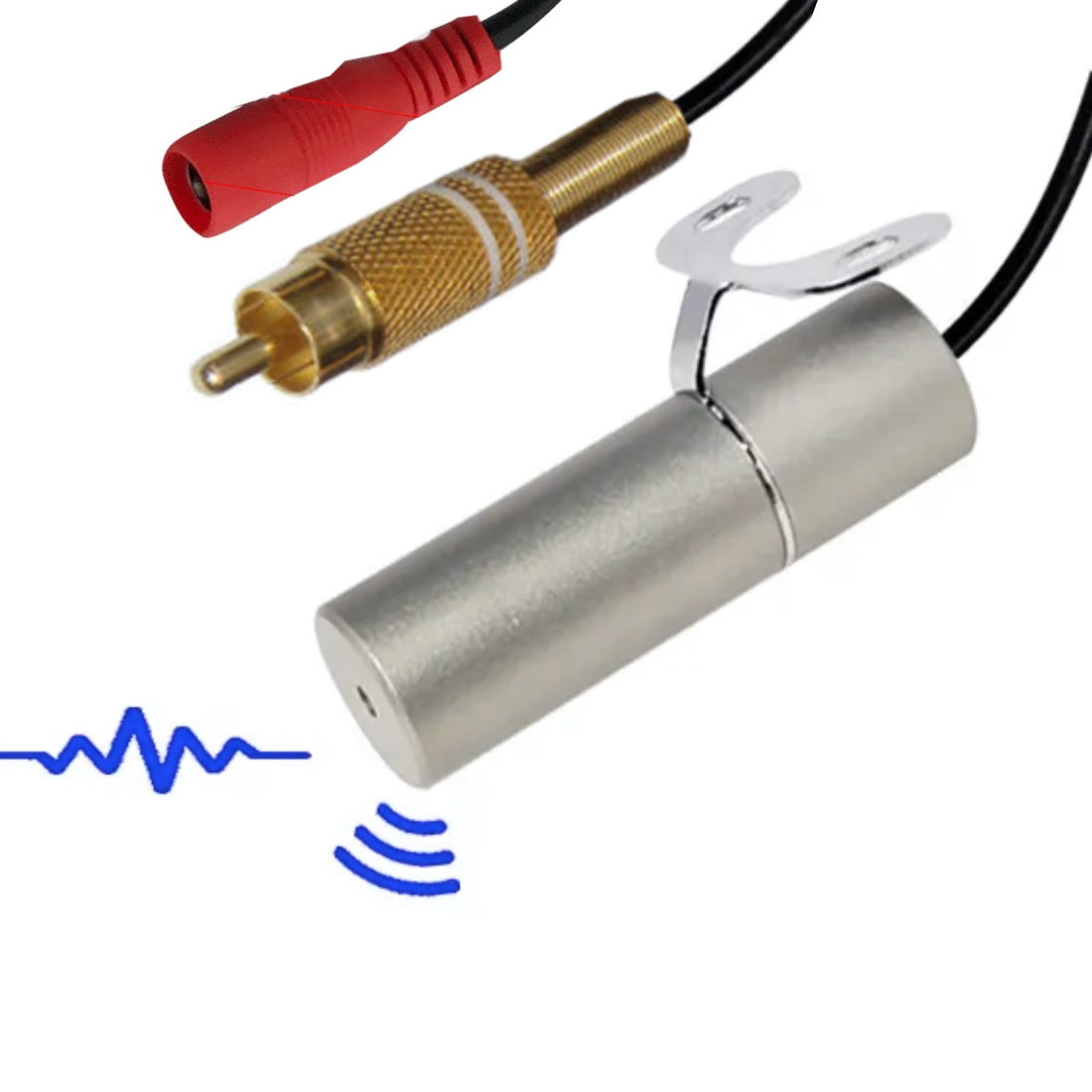

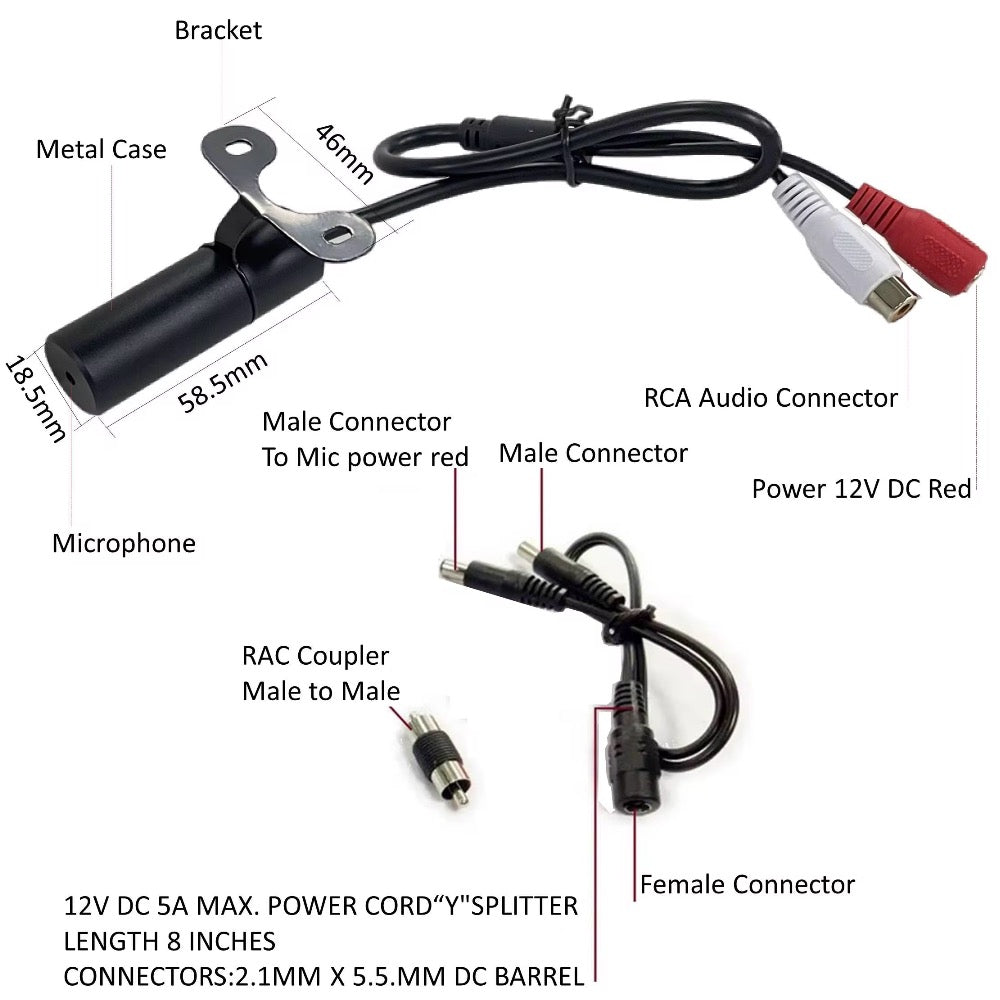

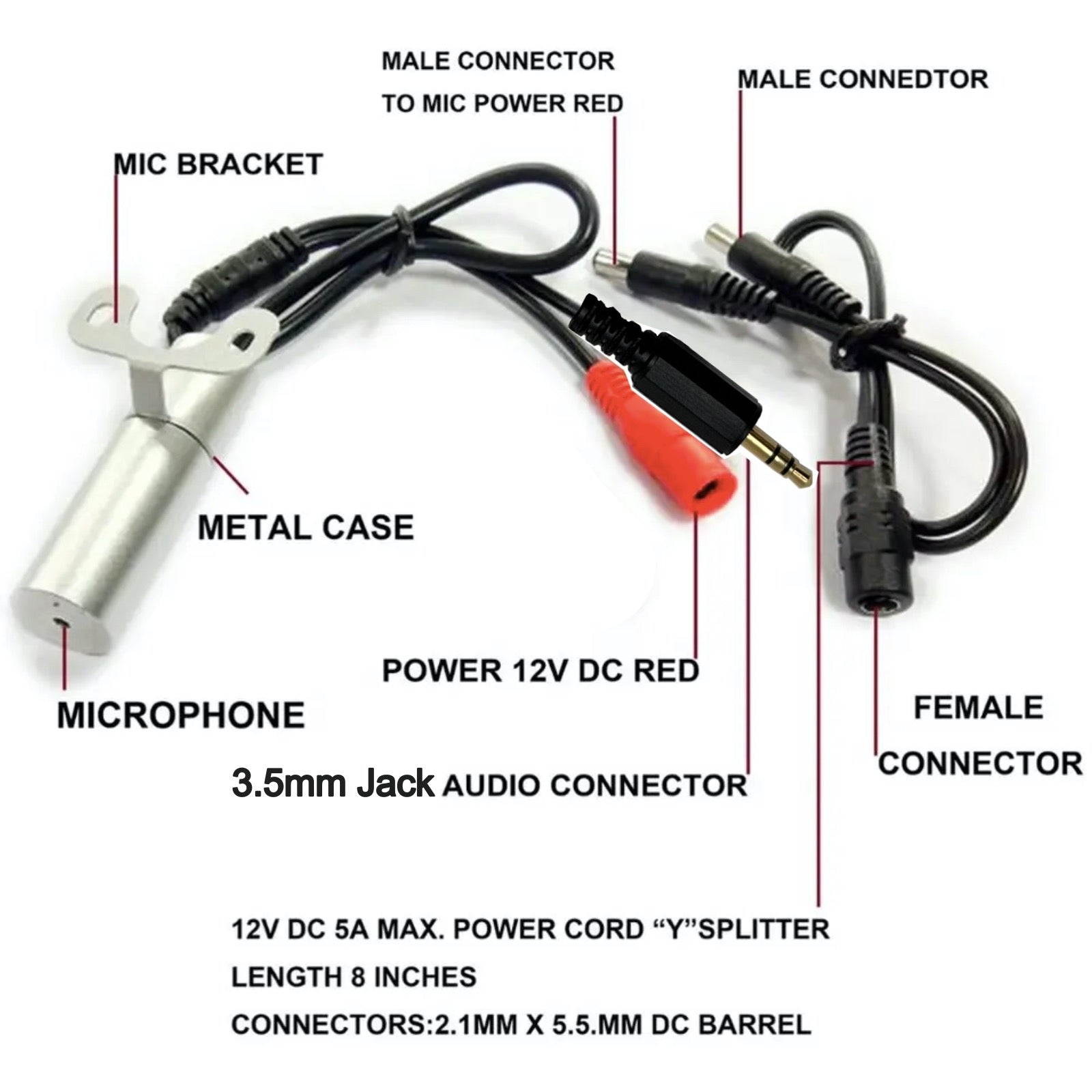

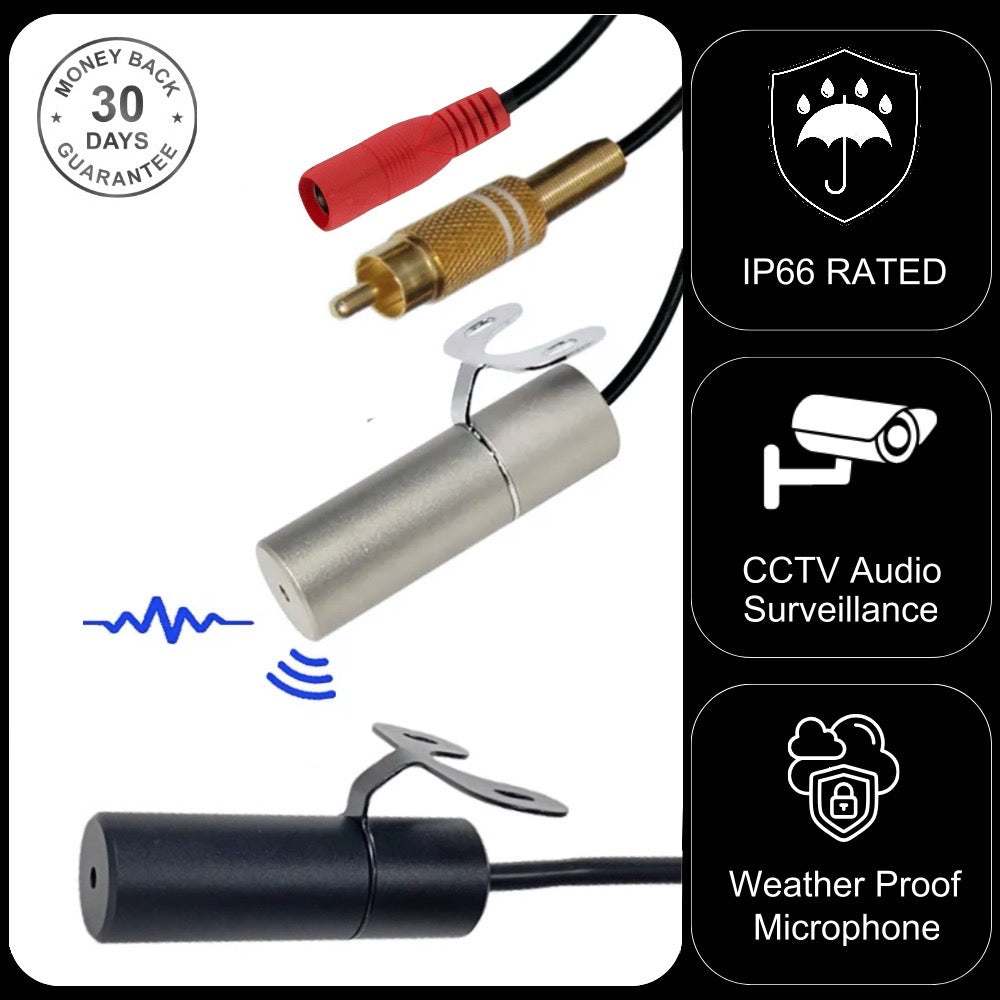

Microphone is completely sealed terminating to 2 connectors - 2.1mm 6v-12v DC Power with Y splitter for connecting camera and microphone to same power supply. RCA Phono output connector for connection to DVR input. Y splitter and RCA phono coupler only included with 30cm optio.
Fixed solid metal angle mounted bracket for fixing to wall / ceiling or camera.
Specifications
Output COnnector |
RCA Phono (Male) |
Special Features |
IP66 Waterproof / Weatherproof, One-way Audio |
Audio transmission distance |
30 metre cable length maximum |
Frequency response |
20Hz ~ 20kHz |
SNR |
50dB (40 dB sound source 1 meter) 30dB (10 meters 40 dB sources) 1KHz at 1 Pa |
Listening area |
50-215 square feet / 5-20 square metres |
Sensitivity |
-47dB |
Dynamic Range |
80dB (1KHz at Max dB SPL) |
Maximum sound pressure |
120dB SPL (1KHz, THD 1%) |
Output impedance |
600 ohms non-equilibrium |
Output signal amplitude |
2.5Vpp/-25db |
Supply voltage |
8V-20V DC (recommended to use 12V) |
Supply current |
17 mA |
Operating temperature |
-15F ~ 158F / -26ºC - +70ºC |
Dimensions |
L-2.5in D-0.75in / L-6.35cm D-1.9cm |
Weight |
1.8oz / 51g |
