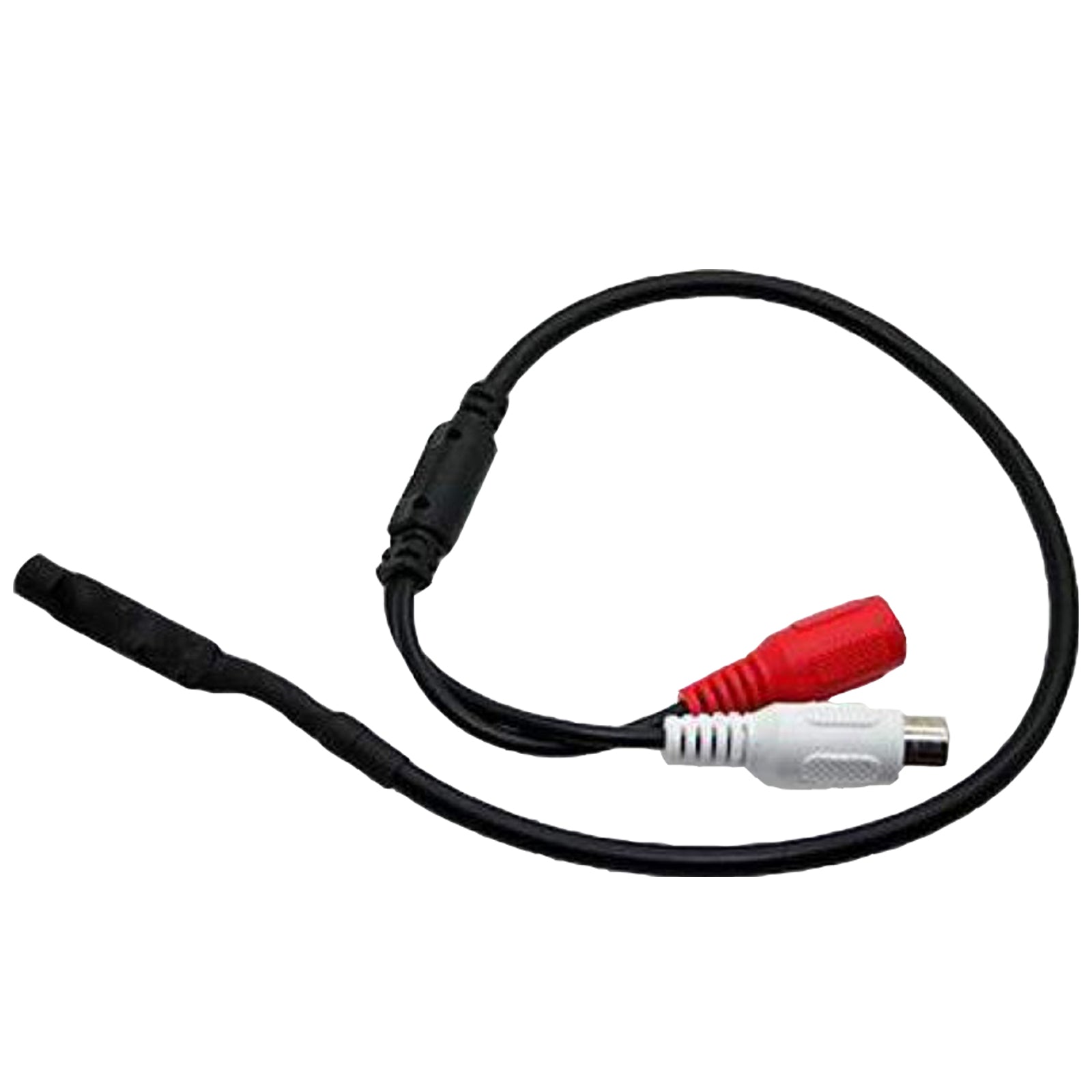

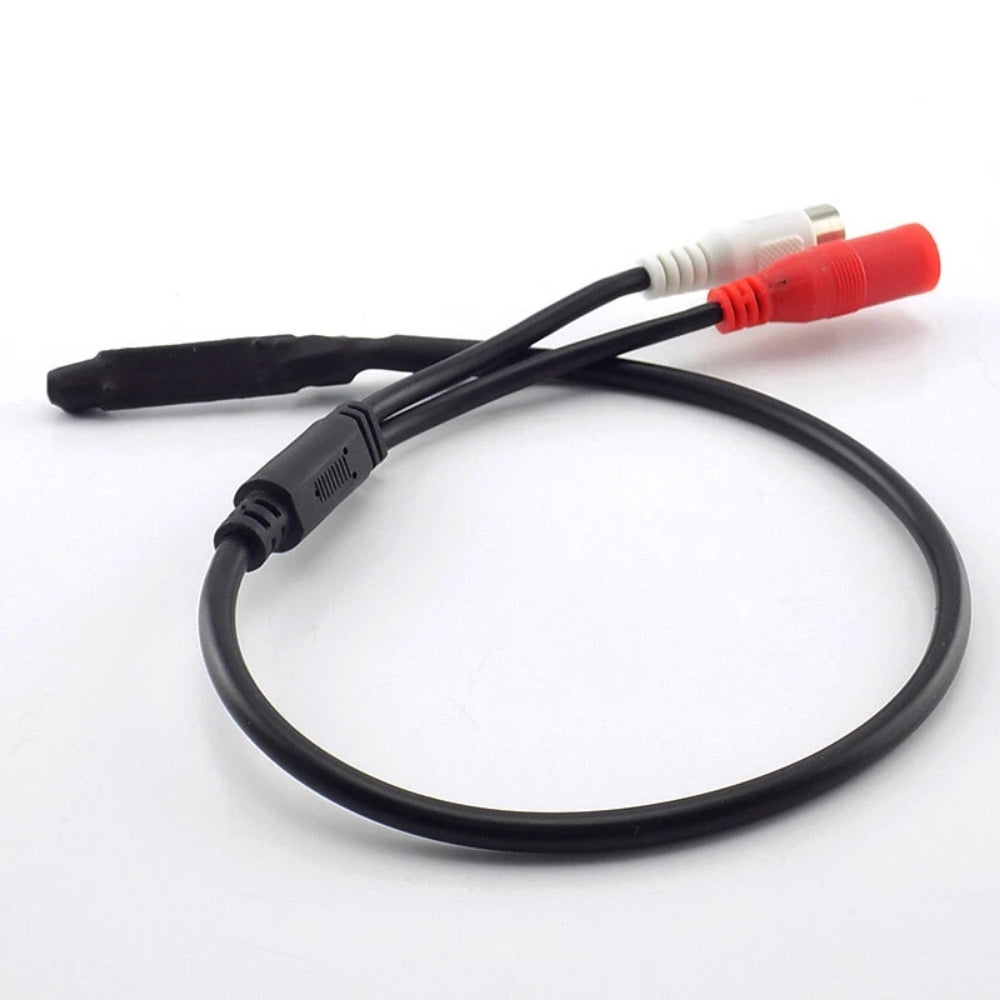

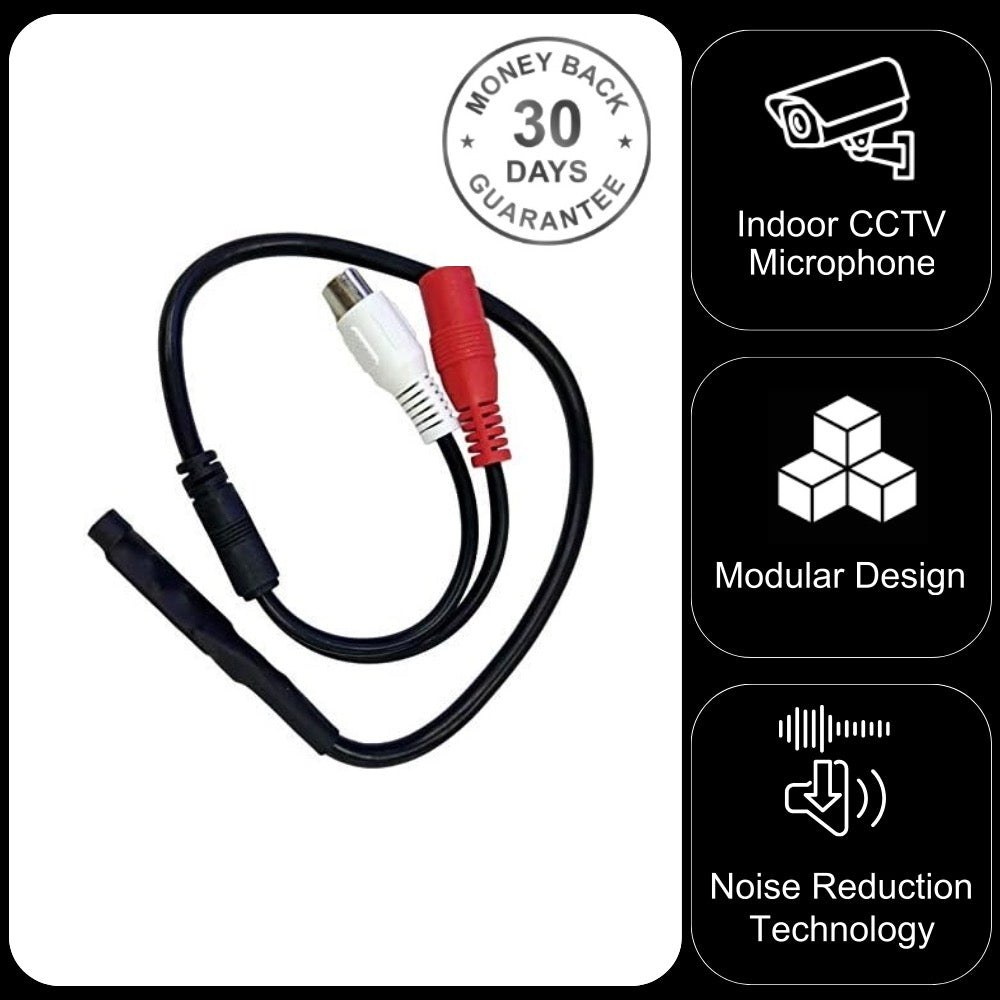

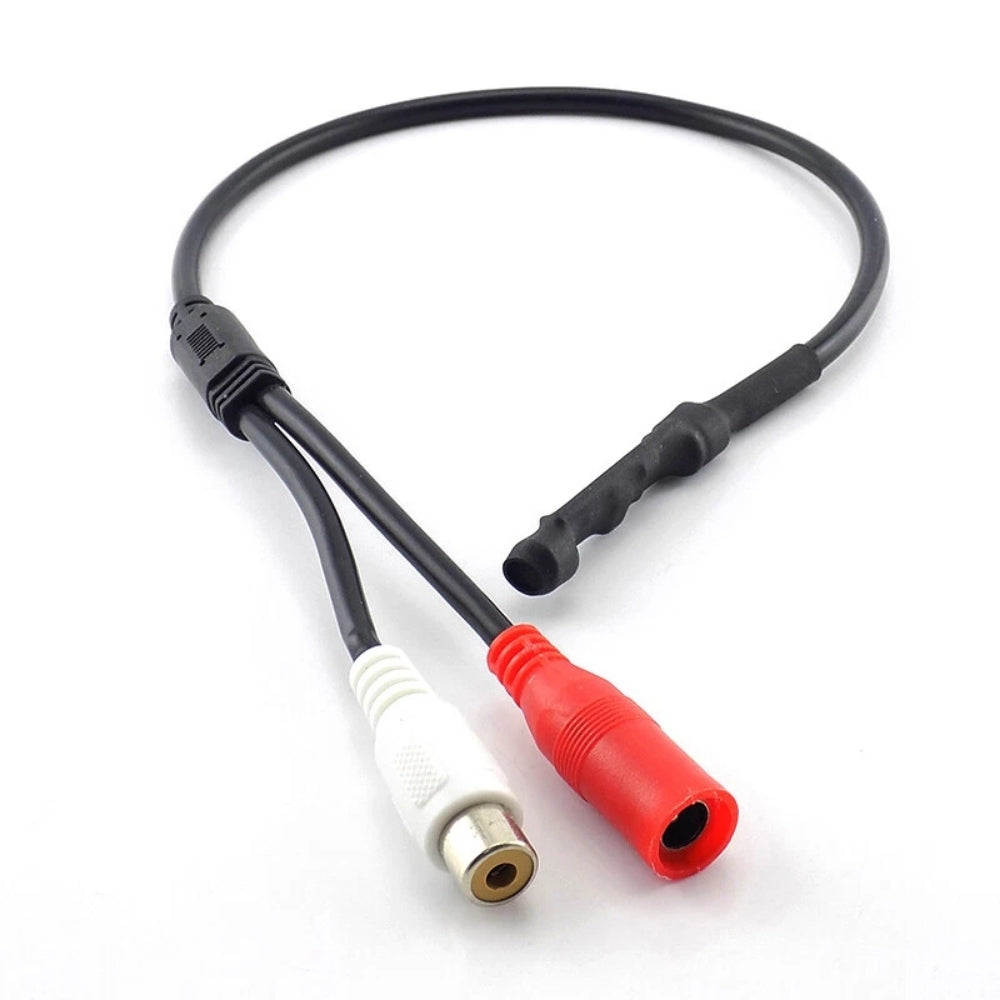

Indoor CCTV Microphone Pre-Amp Module 30cm Cable with RCA Phono Output and 2.1mm 12v DC Input

High-Sensitivity Indoor Audio Solution

The Micronic sub-miniature microphone is a professional-grade audio solution designed to provide supreme, crystal-clear recordings for security and surveillance applications. Engineered for high sensitivity and compact integration, this pre-amp system eliminates the common frustrations of muffled sounds, background buzzing, and low-volume recordings.

Core Specifications & Performance

• Supreme Clarity: Features a high-sensitivity -35dB microphone paired with an integrated pre-amp for crisp, high-fidelity audio.

• Extended Range: Capable of capturing clear sound at distances of up to 15 metres (50ft) when used indoors under optimal conditions.

• Ultra-Compact Form Factor: The microphone head and pre-amp measure a mere 8mm in diameter and 30mm in length, allowing for discrete placement.

• Premium Build: Wired with high-quality audio cabling and finished with a gold-plated audio connector to ensure maximum signal integrity.

Compatibility & Installation

This unit is designed for seamless integration with modern security infrastructures:

• Universal Connection: Fully compatible with all CCTV DVR video recorders featuring audio inputs, as well as any equipment with Line-In audio ports.

• Versatile Mounting: Ideal for installation alongside existing camera systems or as a standalone hidden audio source.

• Cable Options: While this specific model features a 30cm lead, Micronic offers custom lengths ranging from 30cm to 30 metres.

Technical Requirements

The 30cm version is intended for users with existing cabling infrastructure. To operate this unit, the following are required:

1. Audio Connection: A male RCA phono audio cable.

2. Power Supply: A 6-12V DC regulated power supply via a 2.1mm DC male plug.

Note on Outdoor Use: While this microphone can function outdoors, it is strictly an indoor-rated device. It lacks the necessary weatherproofing for long-term outdoor exposure.

The Solution to Common Surveillance Issues

If your current CCTV system suffers from the following, the Micronic pre-amp is the necessary upgrade:

• Silent Monitoring: Watching footage without context because of missing audio.

• Poor Quality: Dealing with muffled, low-volume, or indistinguishable sounds.

• Signal Noise: Recording nothing but persistent buzzing or electrical interference.

• Environmental Masking: Losing voices to the sound of wind or nearby traffic.

Upgrade your system today to ensure your evidence is heard as clearly as it is seen.
