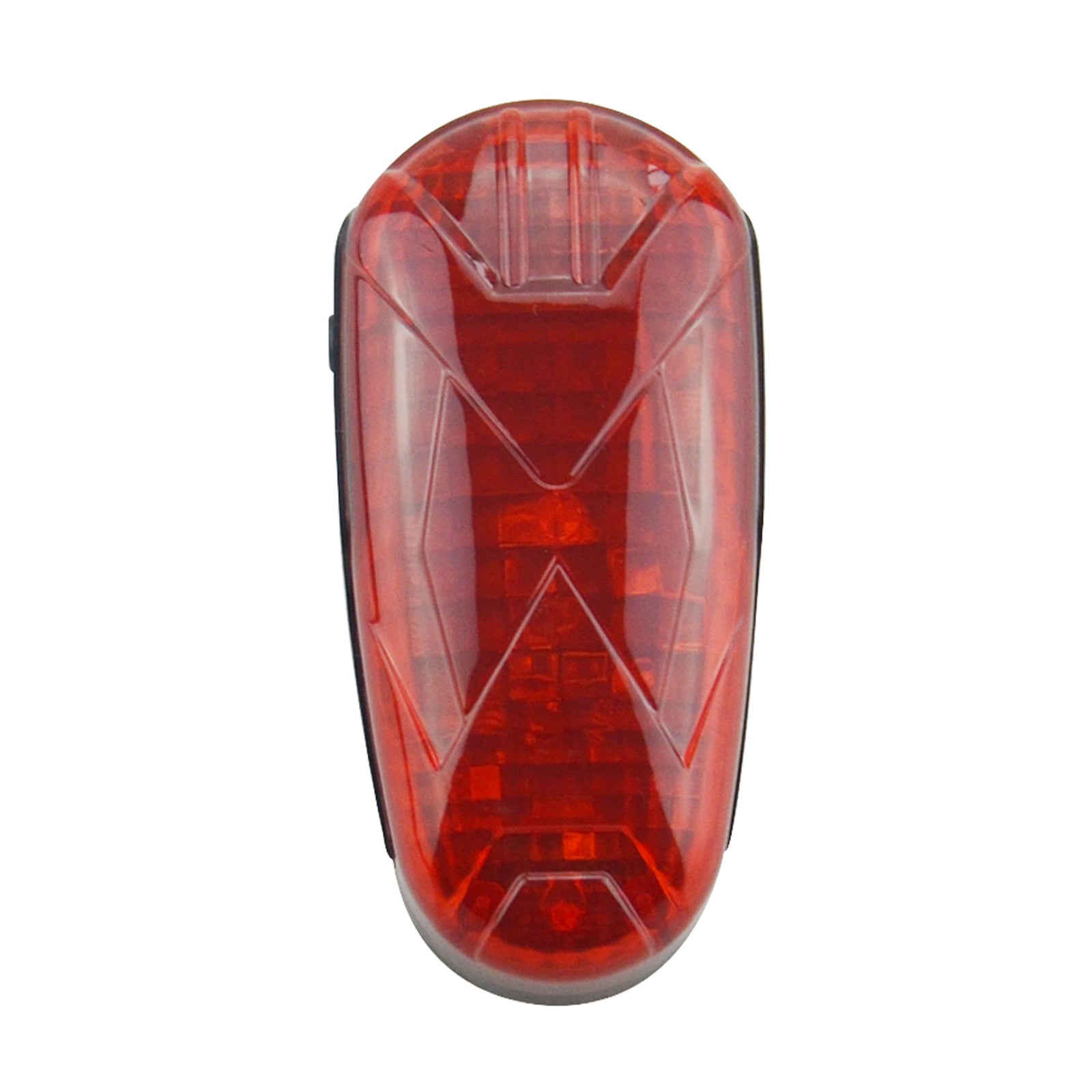

The TK906 Bicycle GPS Tracker is manufactured by TKSTAR and Winnes. Camouflaged as a standard red LED tail light to provide visual stealth against thieves when stealing bicycles, e-bikes and scooters.
Technical Specifications
-
Battery Capacity: 3.7V 1,800mAh rechargeable Lithium-Ion battery.
-
Positioning Accuracy: Satellite tracking precise within a 5-metre radius under strong GPS signals.
-
Hybrid Positioning: Automatically drops down to LBS (Location Based Services) base-tower tracking when inside underground garages, sheds, or tunnels.
-
Network Capabilities: Standard variant relies on 2G GSM/GPRS Quad-band (850/900/1800/1900 MHz). An upgraded version supports 4G LTE bands with full backward compatibility.
-
Integrated Hardware: Includes a functional rear LED bike lamp with three lighting modes (On, Off, Flash).
-

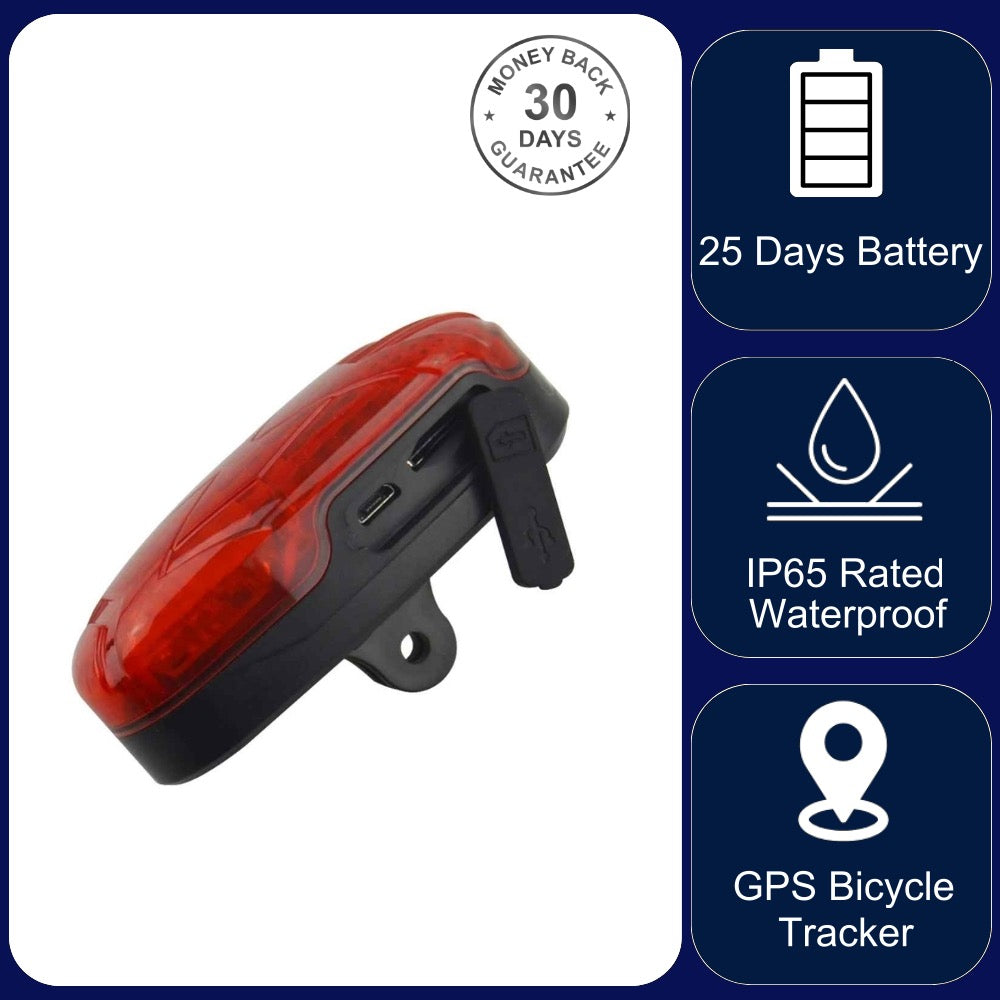

Casing Protection: IP65 waterproof rating, protecting internal electronics from heavy rain and road spray.
-
Dimensions: 85 mm × 40 mm × 28 mm.
-
Weight: 80 grams (extremely lightweight compared to standard asset trackers).
Battery Performance Life
The small, lightweight form factor limits battery space, but power consumption is regulated dynamically by a 3D vibration sensor.
-
Smart Sleep Standby Mode: Up to 25 days (approx. 3.5 weeks) if the bicycle remains completely stationary.
-
Continuous Active Tracking: 2 to 3 days if uploading live telemetry coordinates without stopping.
-
Real-World Average Usage: 1 to 2 weeks under regular daily commuting routines.
Core Security & Anti-Theft Features
-
Motion & Vibration Sensor: If someone attempts to tamper with or move the stationary bike, an internal sensor triggers an immediate alert to your mobile within 3 seconds.
-
Discreet Audio Monitoring: Features a built-in remote microphone. Users can place a silent mobile phone call directly to the tracker to listen to live surrounding environmental audio.
-

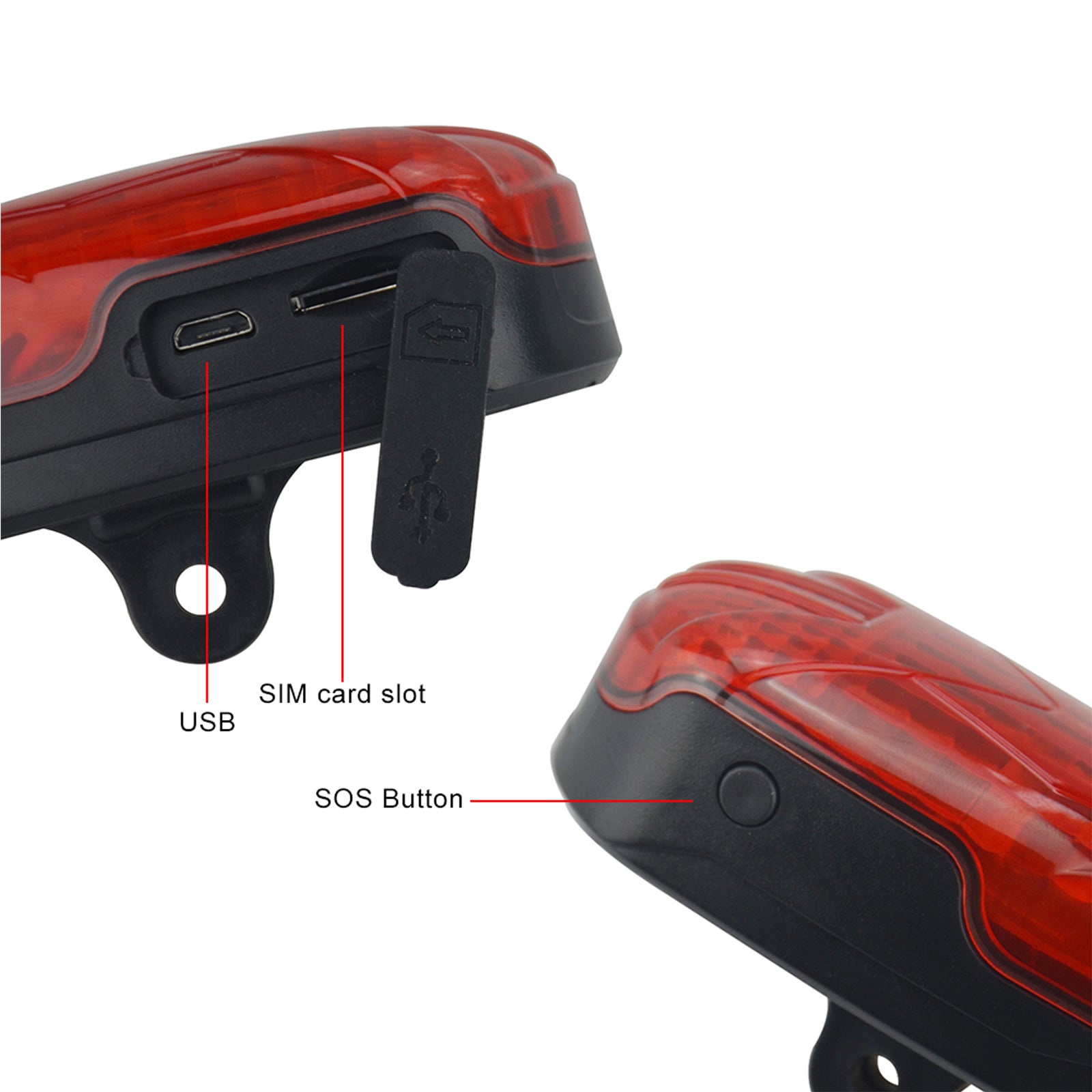

Physical Emergency Button: Equipped with an external SOS button that broadcasts an instant "Help Me" distress message and coordinates to all pre-authorised admin phone numbers when pressed for 3 seconds.
-
Geofencing & Overspeed: Sets up multiple customisable safe zones via the map interface, sending automated push notifications if the bike crosses perimeter borders or exceeds speed limits.
-
No Platform Fees: Pairs seamlessly with free-to-use tracking apps like WINNES GPS or TKSTAR, offering 6 to 12 months of historical path logging without recurring subscription fees.
Functional Contrast: Heavy Asset Trackers vs. Bike Light Tracker
|
LK209 Series / TK915
|
TK906 Bike Light Tracker
|
|
Primary Use Case
External car chassis / Fleet management
|
Primary Use Case

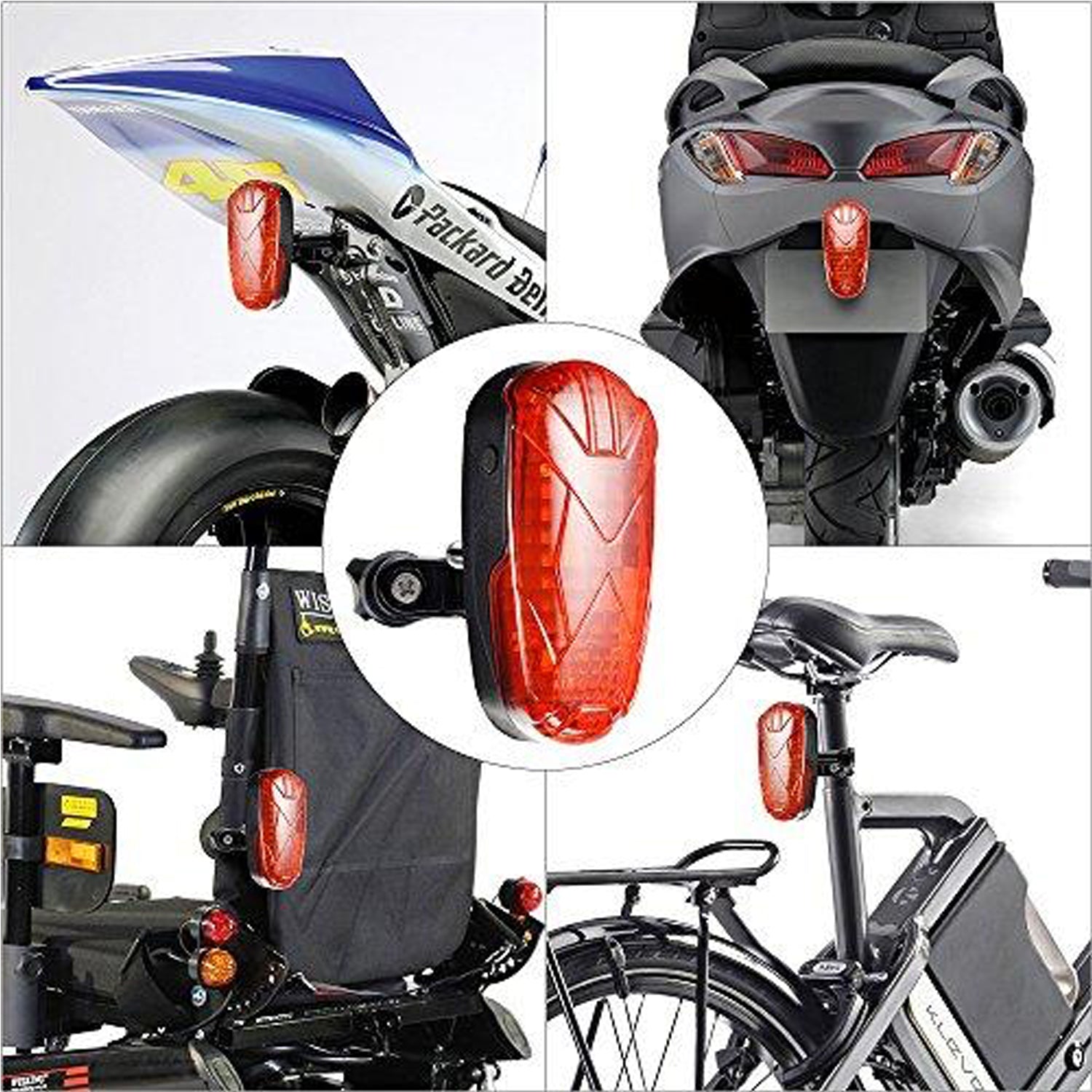

Commuter bikes, e-bikes, and scooters
|
|
Physical Camouflage
Large magnetic block, needs to be hidden under frame
|
Physical Camouflage

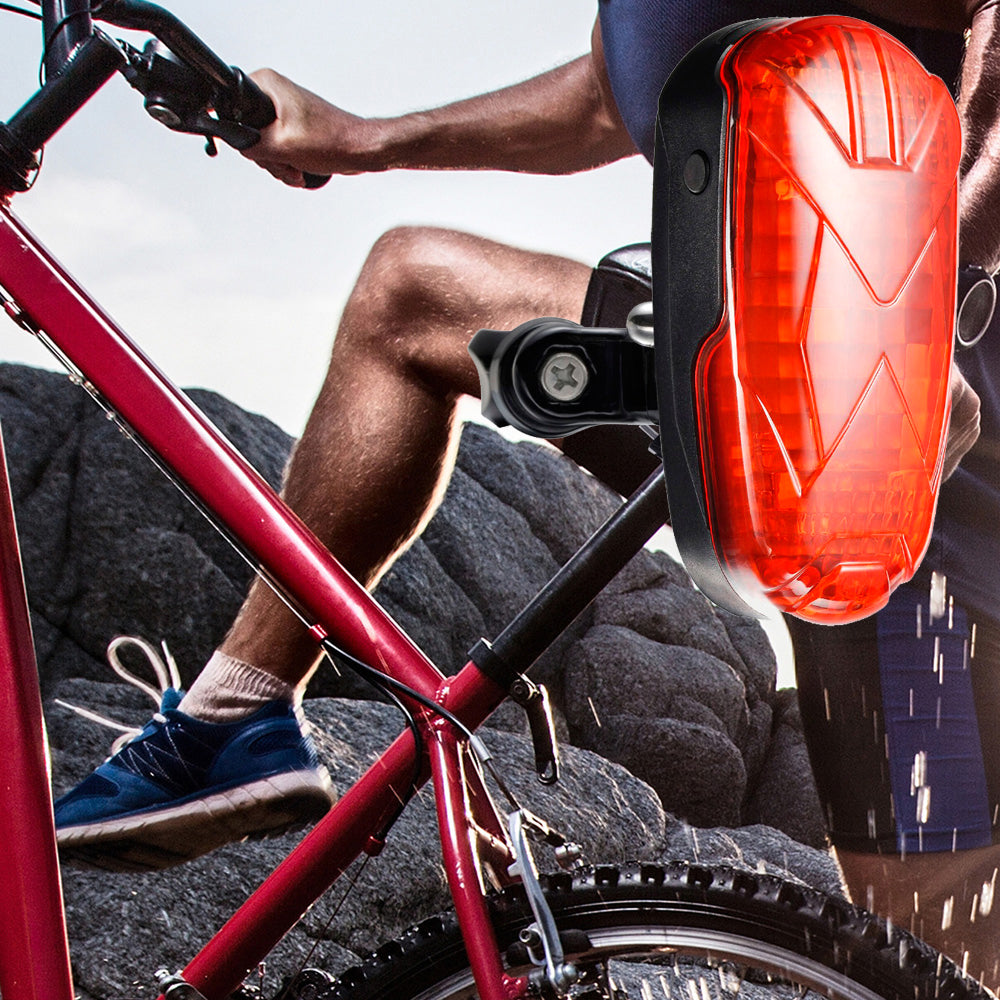

Openly exposed on seat post as a normal tail light
|
|
Battery Life Scale
Massive (1 to 6 months of active tracking)
|
Battery Life Scale
Moderate (1 to 2 weeks average tracking)
|
|
Mounting Hardware
Built-in industrial magnet array
|
Mounting Hardware

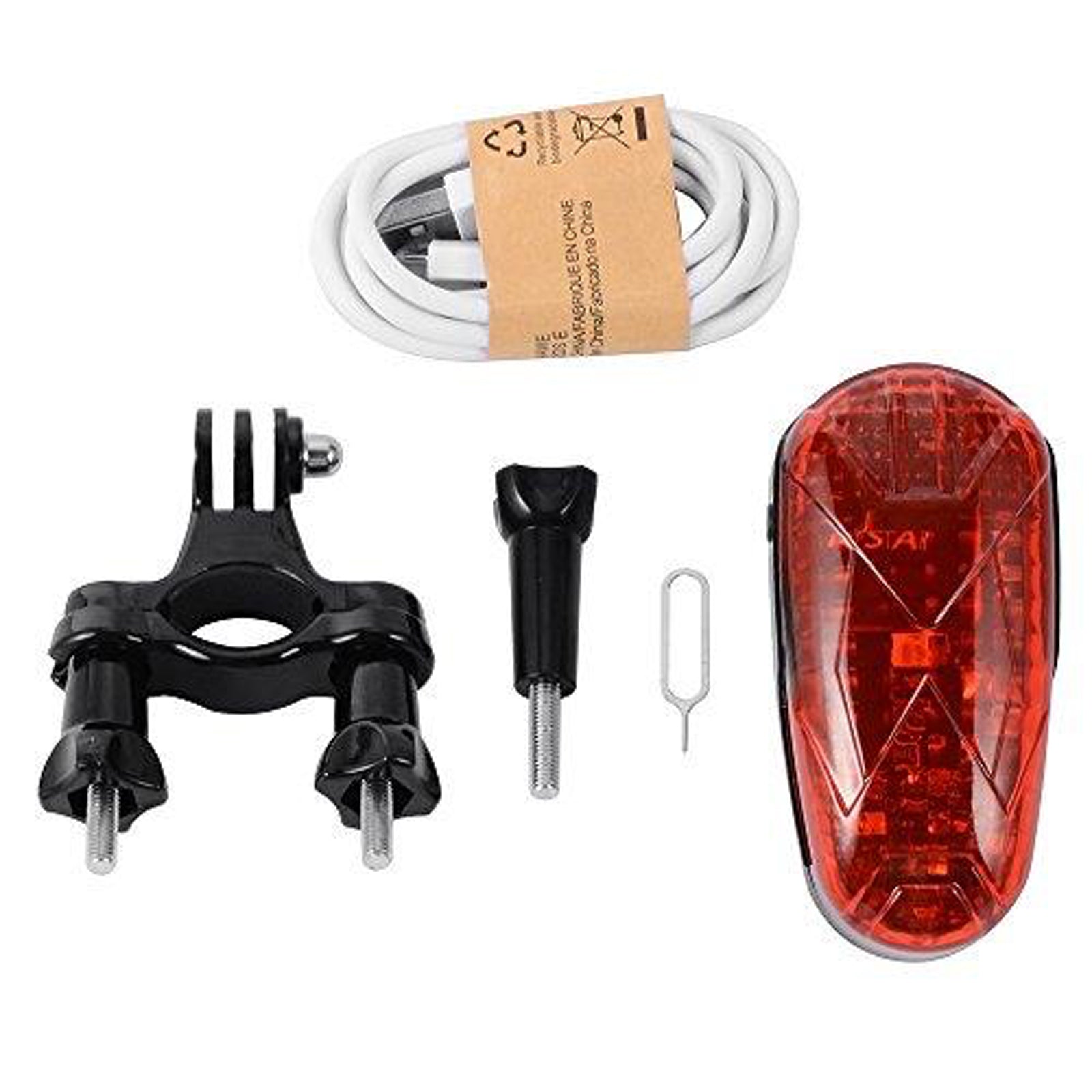

Seat post bracket bracket and fixing elements
|
