Adapter to Convert Shure 4 Pin Mini XLR Microphone to Different Body Pack Transmitter Input

Precision-Engineered Connectivity for Professional Wireless Systems

Micronic offers specialized microphone adapters designed to bridge the gap between your Shure (or Shure-compatible) 4-pin mini XLR (TA4F) microphones and various alternative bodypack transmitter brands. These adapters provide a seamless transition for lavalier, ear-hook, and instrument microphones, ensuring your existing gear remains versatile across different wireless platforms.

Critical Selection Guide: Shure 4-Pin Mini XLR

Shure 4-pin Mini XLR microphones utilise several different internal wiring configurations depending on the microphone model. To ensure you receive the correct adapter:

1. Select your Shure Microphone and Transmitter Connector from the drop down menu's above
2. If your Shure microphone or transmitter connector is not available Message us with your microphone model and transmitter before completing your purchase.
3. Alternatively, leave a note at checkout specifying your microphone model.

Unsure which adapter you need?  If your microphone brand is not listed or you are uncertain about the connector type, please message us with your microphone's make and model. Our technical team will advise you on the correct adapter for your setup.

Key Features & Design Philosophy

Unlike rigid, one-piece adapters that can be bulky and prone to damaging transmitter ports, Micronic adapters are designed with a 15cm flexible cable between connectors.

• Enhanced Durability: The short length of copper-screened cable prevents the connector from "sticking out" too far, reducing leverage and potential damage to the body pack.

• Superior Comfort: The flexible design makes the unit more comfortable for the wearer and easier to conceal.

• Custom Circuitry: Each adapter is hand-made and contains the necessary internal components to manage microphone power bias and specific wiring requirements for the target transmitter.

Compatibility Guide

1. Compatible Shure Microphones

This adapter is specifically wired for the following Shure models:

• Models: Beta 53, SM93, MX183, MX184, MX185, SM11, WH20, SHM50, and T4 Stagecore. SM31, SM53, Beta WB 98H/C, PGA31, PGA98H, WL50/51, WL93/183/184/185/193, TH53 Twinplex, Beta98a, CVL LAV, MX418, WCM16, MX150, MX153, DH5, TL45/46/47/48, UL4

3. Incompatible Brands

Microphones from these brands use different wiring standards and are NOT compatible with this specific adapter:

• Electrovoice, HME, Telex, Vega.

Important Technical Information

• Connectors: All adapters in this listing feature a TA4M (4-pin mini XLR male) input to accept microphones with a TA4F (female) connector.

• Selection: Please use the drop-down menu to select the specific input connector required for your destination body pack transmitter.

• Application-Specific: These are strictly for converting microphones to bodypack transmitters. Matching physical connectors does not guarantee functionality for other audio applications.

• Precision Manufacturing: Every adapter is hand-built and fully tested based on 30 years of research and precise manufacturer specifications.

Trusted by the Industry

Micronic is a global specialist in audio connectivity. Our products are the preferred choice for high-stakes environments, including:

• Broadcasters: BBC, ITV, Channel 4.

• Iconic Venues: Royal Albert Hall, London Palladium, National Theatre, Barbican Centre.

• Entertainment: Universal Studios, Alton Towers, and professional film crews worldwide.

Note: If you are unsure about your specific microphone wiring, please message us before ordering to ensure total compatibility with your equipment.

How to Order

To ensure a perfect match, please click 'Add To Cart' and select the specific "Shure Microphone" you wish to convert, followed by the "Transmitter Connector" you wish to connect to. If your microphone or transmitter is not on the list contact us via our online chat or email - micronic@live.co.uk or telephone 01962 859426

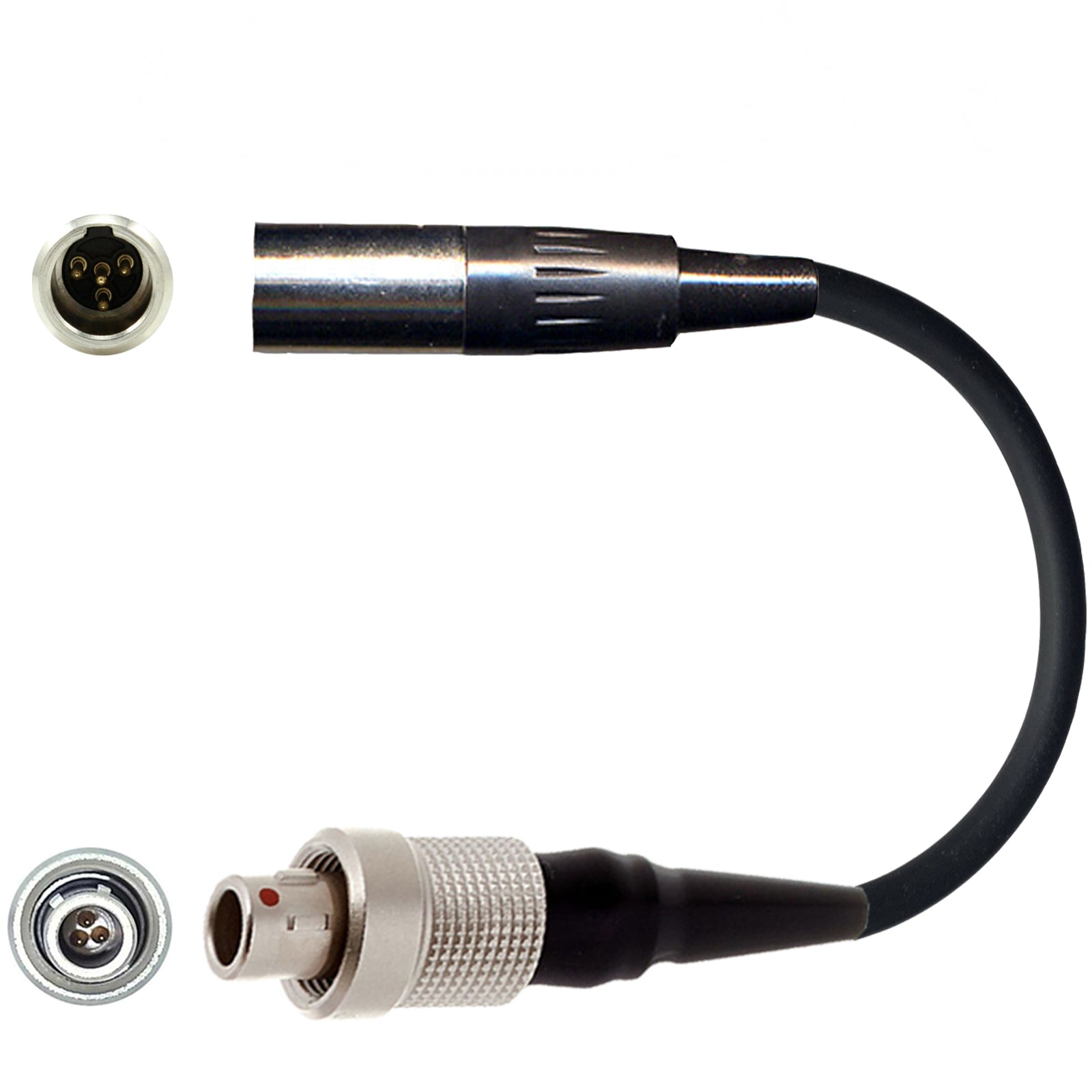

Example: If you own a Shure SM31 microphone and want to convert it to Sennhesier Lemo 3-Pin transmitter, simply select " SM31/PGA31 Headset" from the Shure Microphone options. Followed by " Lemo 3 Pin Connector" from the Transmitter" options. The corresponding connector image selected will be displayed for your confirmation.

Orders are processed and shipped promptly. Returns accepted within 30 days if unused and in original condition. Faulty items can be returned within 60 days for exchange or refund. All products include a 12-month manufacturer warranty.
