4G Sim Card 5MP Pin Hole Lens Board Camera Video Recorder DIY Module for CamHiPro App

Regular price
£99.99
Wishlist Add to wishlistRemove to wishlist Compare Add to compareRemove to compare

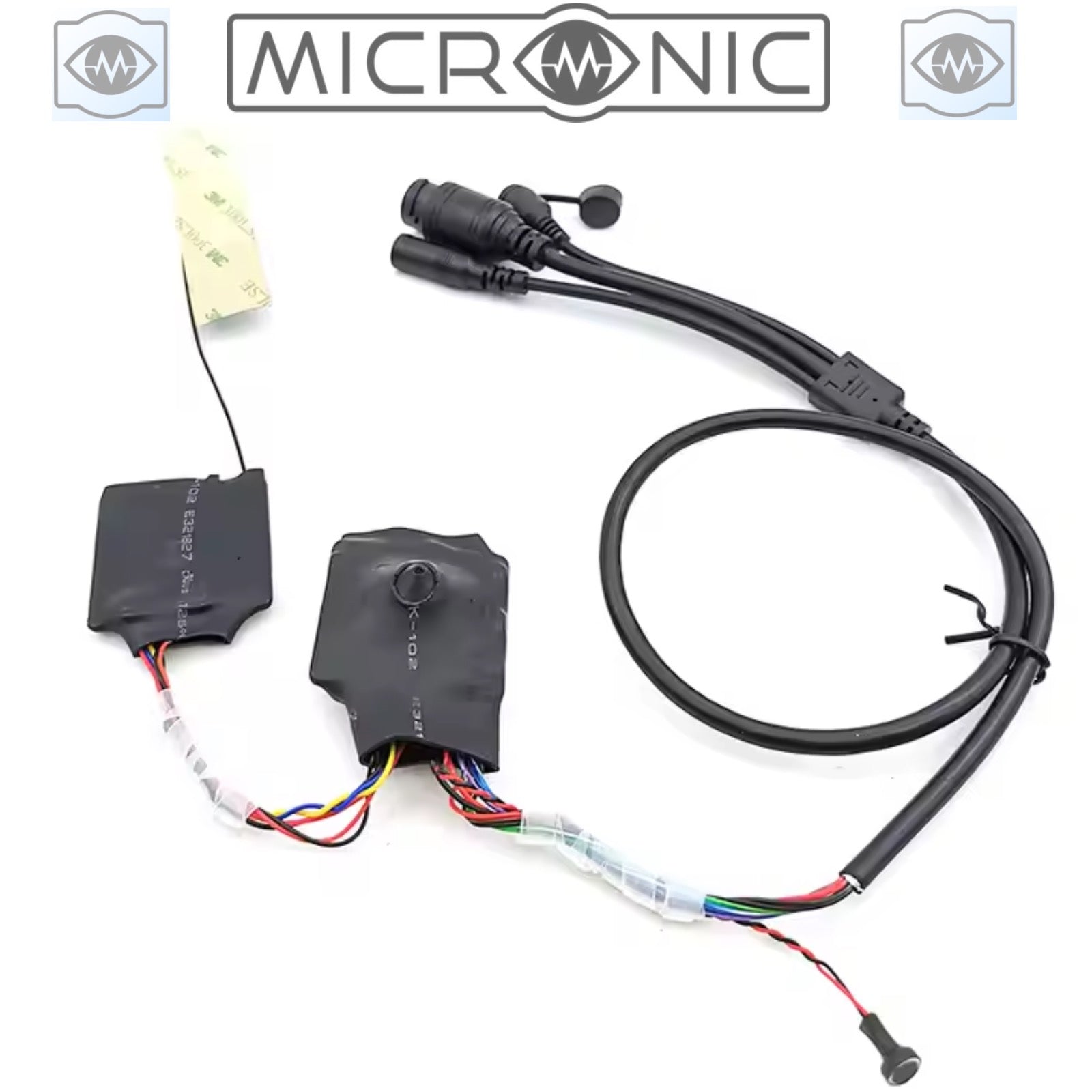

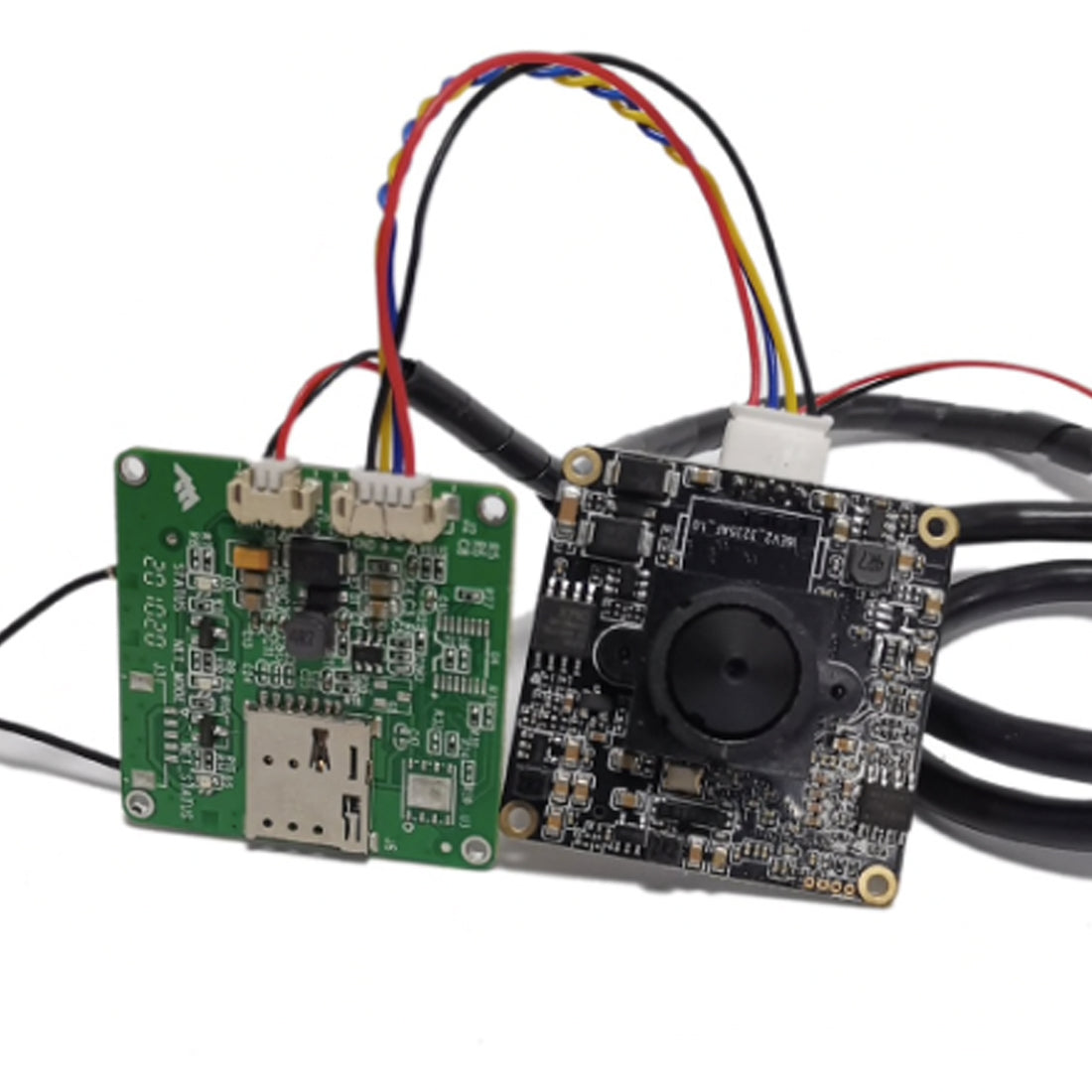

5MP high definition pin hole lens camera & 4G sim card video camera DIY module. It works anywhere by inserting sim (O2 sim supplied for UK customers) or use own. Compatible on all UK & EU cellular networks including countries listed below. Module to set up your own camera in various applications & different security purposes. Powered on 12v DC & power consumption is 300-400mA & operate on battery or AC adapter (12v DC 1A). Download free CamHiPro app to view on Apple iOS or Android smartphone / tablet device. Also includes PC client software to use PC or Onvif platform.

Features

App: CamHiPro / PC software / Onvif
Maximum Memory: 128GB MicroSD Card
Audio: built-in microphone, one way audio

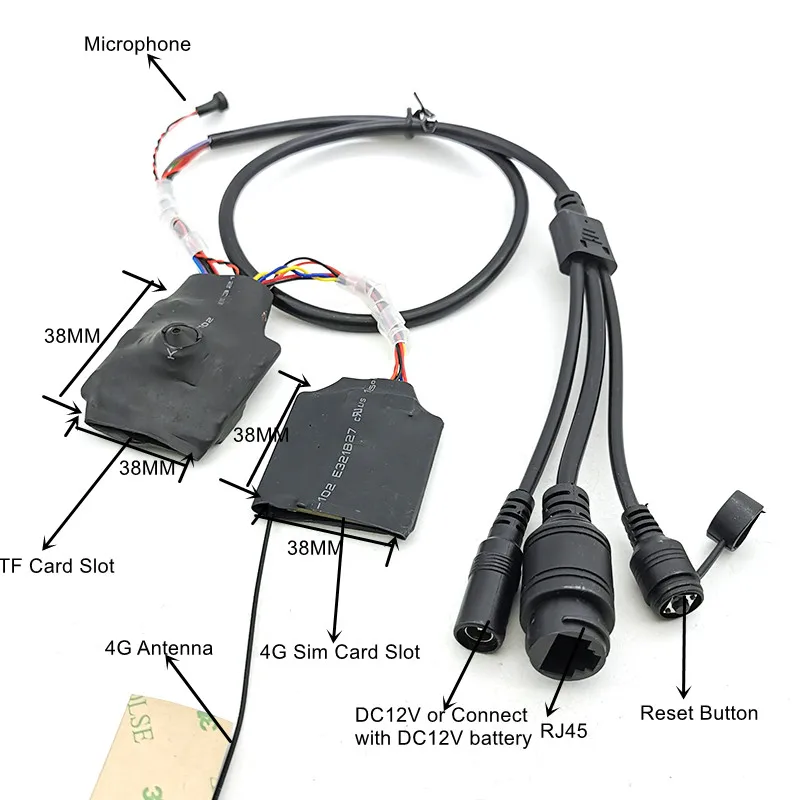

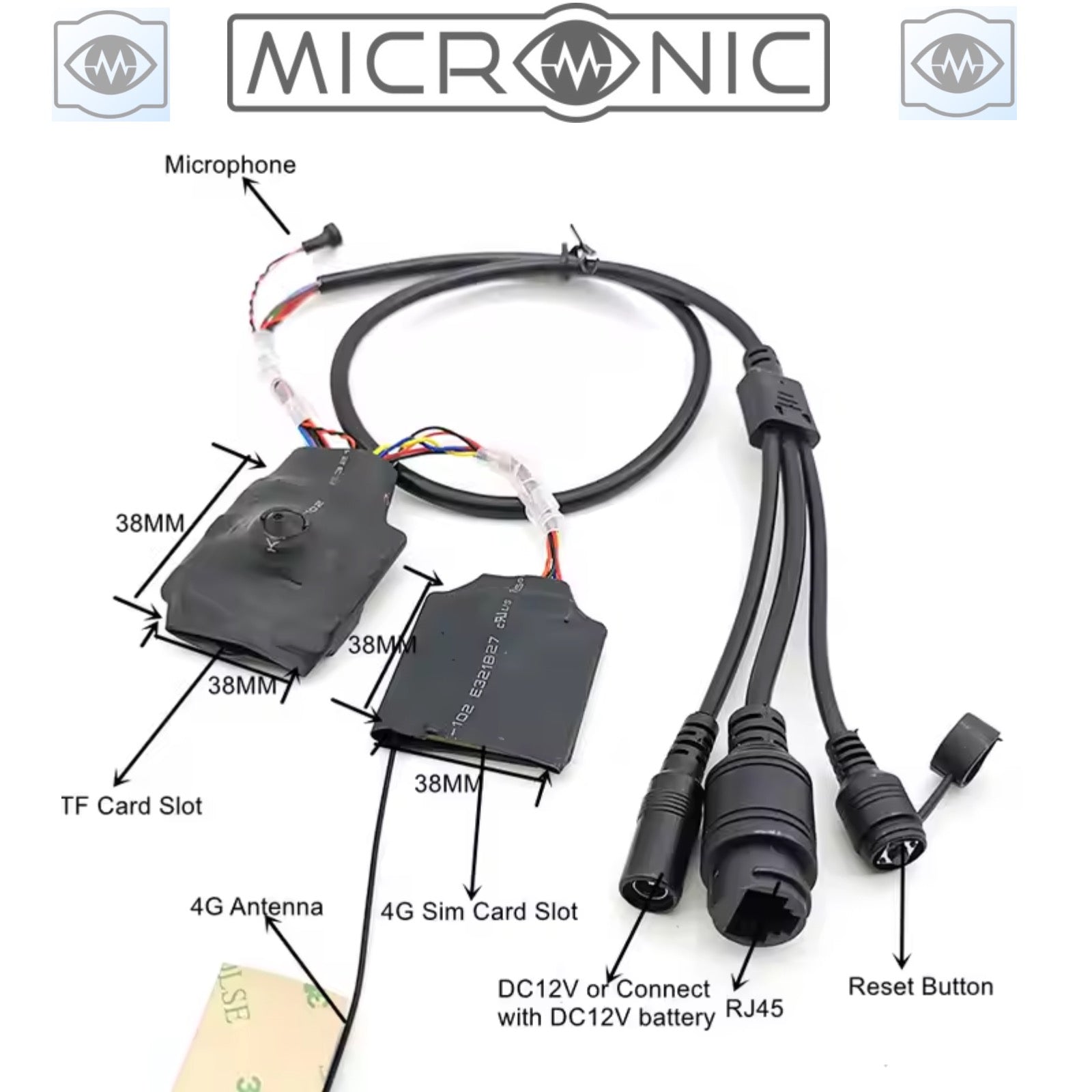

Cable: Reset button, 12v DC input, Ethernet
Features: motion detection, human frame
Alarm: Recording / push notification
Sensor: CMOS (Sony)
Pixels: 5MP
Video Compression Format: H.265
Lens: 3.7mm fixed focus
Viewing Angle: 90degree
Material: Plastic
Low Lux CMOS
App: Camhipro
Support: PC Client software, Onvif
Sim support: 3G, 4G, 5G LTE
Power: 12v DC
Consumption: 350mA

UK / Europe

4G Europe

Support

Israel

4G Europe

Support

Kuwait

4G Europe

Support

Brazil

4G Europe

Support

Russia

4G Europe

Support

Italy

4G Europe

Support

Poland

4G Europe

Support

Ukraine

4G Europe

Support

Thailand

4G Europe

Support

Finland

4G Europe

Support

Spain

4G Europe

Support

Bulgaria

4G Europe

Support

Canada

4G Europe

Support

Estonia

4G Europe

Support

How to quickly set up 3G/4G
First of all , Download APP "CamHi" from the iPhone App Store or Google Play Store. Or scan the QR code

Postage and delivery

Specifications

Camera

Operating

system

Embedded Linux OS

Processor

T31X T31N GK7205V300

Sensor

5 mega Pixel

1920P :1/2.8" Sony imx335 CMOS

 Lens interface

M12

Lens

3.7mm

View angle

90 degree

Illumination

0.001lux/0lux (IR on)

Day & Night

Support

Night vision

NOT Support

Video

Video

compression

H.265 H.264

Video stream

5MP HD three stream

Resolution



Stream rate

code rate


frame rate

4K UHD

5MP Main stream: 2560x1920@15fps, 2560x1440@15fps
Sub stream:
800x600/800x448@25fps, 640x480/640x352@25fps

32~6144Kbps. supports constant bitrate/variable bitrate


5MP: 20fps



settings

Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror


enhancement

Backlight compensation,Automatic white balance,

Digital WDR, 3D digital noise reduction

Motion detection


Alarm



Viewers


OSD


Users

Network



Can set 4 independent detection region (1-100 sensitivity can be set)


alarm upload picture & video to FTP server,

alarm record picture & video to MicroSD card

alarm push notification to phone



Support 4 users simultaneously viewing


support camera name, date and time information superimposed


Supports user and rights management


Maximum support 4 users to simultaneously browse


TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP,

DHCP, DNS, DDNS, NTP, UPNP, RTSP etc



4G

4G standard

FDD-LTE

Frequency

B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)

Transmission

Upload max:50Mbps, download max: 150Mbps

Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

3G

3G standard

WCDMA

Frequency

B1(2100MHz), B8(900MHz)

Transmission

Upload max:5.76Mbps, download max: 21Mbps

Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Interface

Power interface

5.5mm power interface

Ethernet

RJ45 & Antenna 10M/100M Adaptive Ethernet Interface

TF card Slot

maximum support 128G TF card,

can set the automatic capture and timer recording

Reset button

Support

General specification

Power supply

DC 12V 1A

Power

Day:3W, Night:8W

Temperature

-20 to +60 degree

Humidity

10% to 95%(non-condensing)

Waterproof

NOT Support

Material

PCB

Installation

DIY

Product size(W×D×H)(mm)

Camera - 38mm x 38mm  / 4G module  38mm x 38mm

Product

weight

150 gram

Accessories

1*camera ,  1*Manual

Package Size(W×D×H)(mm)

200*130*95mm

Package

Weight

380 grams
