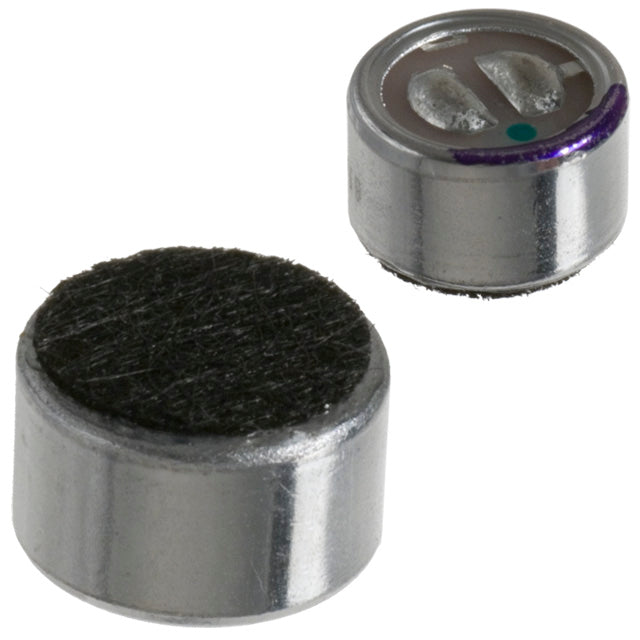

Panasonic WM-61A Omni Directional Mini Electret Condenser Microphone Capsule

Regular price £4.99 Sale

The Panasonic WM-61A microphone capsule is a very popular and small 6mm diameter electret condenser for general purpose use. As standard wired directly to any compatible device this microphone will most definitely improve sound. Also renowned for its use with the Linkwitz modification for DIY recording projects as shown in our photo

Features

Back electret type designed for high resistance to vibration

High sensitivity, high signal to noise ratio

Solder type for lead wires

Specifications

Model: WM-61A

Manufacturer: Panasonic

Diameter: 6.0mm

Height: 3.4mm

Impedance: Less than 2.2KΩ

Directivity: Omni-directional

Frequency: 20-20,000Hz

Max. Operation Voltage: 10V

Standard Operation Voltage: 2V

Current consumption: Max.0.5mA

Sensitivity reduction: within-3dB at 1.5V

S/N ratio: More than 62dB

Sensitivity: -35±3dB (0dB/pA,1KHz)
