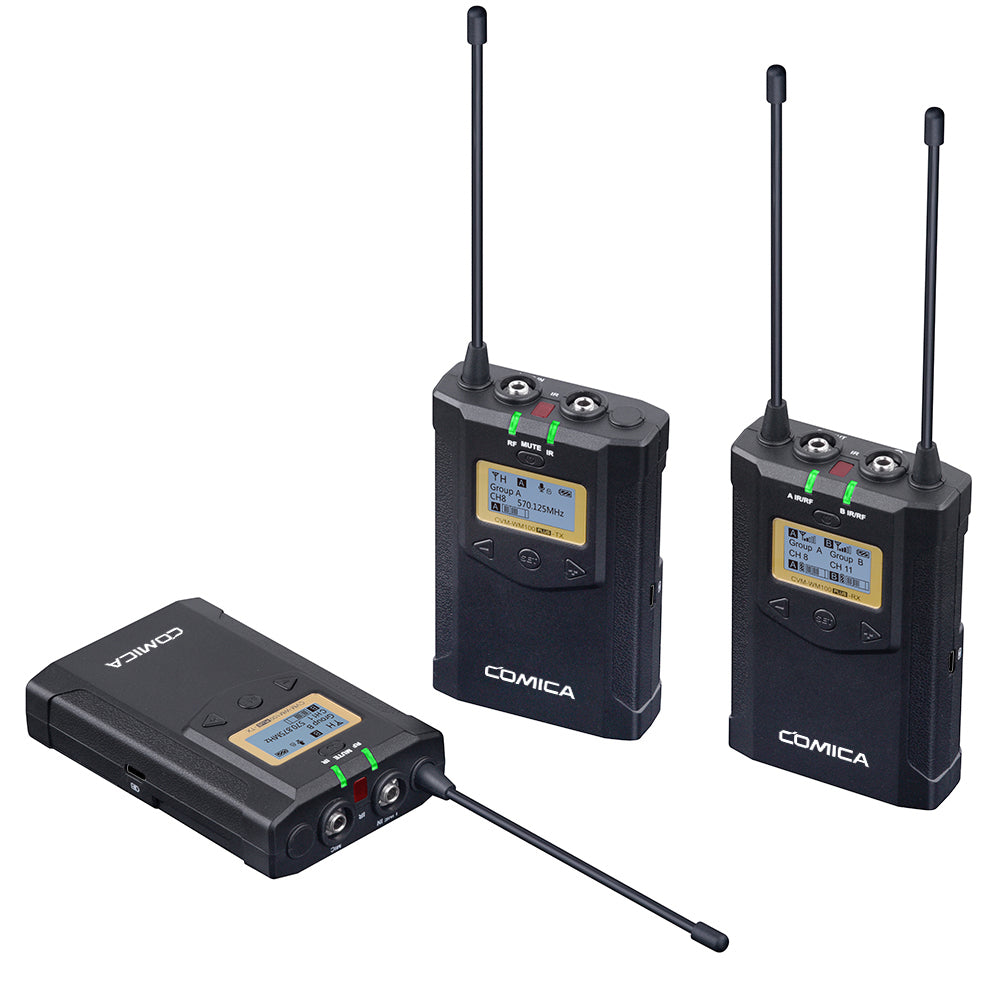

Comica WM100 PLUS (A) Wireless Lavaliere Microphone Dual-Channel UHF Transmitter Receiver for Camera Smartphone PC

Regular price
£249.99
Sale price
Regular price
£219.00
Wishlist Add to wishlistRemove to wishlist Compare Add to compareRemove to compare

The Comica WM100 Plus 16-Channel UHF dual transmitter and receiver can be used for multiple devices working together, Adjustable RF signal strength or auto-scanning for quick channel selection to A/B group. With LCF low cut filtering Mode and Manual / Auto IR sync. Group A Frequency: 606.125MHz~609.875MHz ; Group B Frequency: 610.125MHz~613.875MHz.

The working distance of COMICA CVM-WM100 PLUS is up to 100 metres (Open Area 328ft, 196ft in area with obstacle), ideal to capture the audio in large scene.

High resolution screen on CVM-WM100 PLUS wireless microphone adopt LCD screen and all the font / icons are crystal clear with broad viewing angle. In addition, You can monitor the battery level and volume by the parameters on the screen.

Real-time audio monitoring on receiver, can test whether it is working normally during recording. CVM-WM100 PLUS Brings you more professional and convenient recording.

Adjustable RF signal strength when working distance is within 160ft, you can switch to low strength mode, which helps reduce power consumption for longer standby time. When the working distance is over 160ft, you can choose high strength mode to extend range and improve audio quality.

Comes with lavaliere mics, cables, wind muffs, adapters, shoe mount, transmitter clips all in luxury carry case. You would not want for anything else this system is just great for your professional production / event / filming.

comica cvm-wm100plus

What You Need to Note When You Use CVM-WM100 PLUS:

Channels:16 1. The antenna will affect working distance, be sure to protect it and avoid any man-made damage.
Signal / Noise:65dB 2. When performing infrared code matching, please keep it within 30cm distance. Otherwise, the communication may be too weak and the code will not be successful.
Receiving Sensitivity: -90dBm 3. When performing S/M switching, please set it before use to avoid short-term current interference caused by switching during use.
Stray Radiation:-60dB 4. While working with smartphone, you need to purchase the TRS-TRRS audio cable adapter separately,And pay attention to set the phone mode to ‘flight mode’ to avoid call interference.
Sound Delay:20ms 5. Take notice of the batteries'positive and negative poles'to avoid reversion, otherwise the product may be damaged.
Audio Input: 3.5mm Port & XLR 6. Please prepare the audio adapter if your device isn't the 3.5mm or XLR port.
2
2
1

Postage and delivery

Specifications

Parameter Technology

  • Lavalier Transmitter TX
  • Channels: 48 x 2
  • Group A Wireless Frequency: 568.125MHz ~ 579.875MHz
  • Group B Wireless Frequency: 580.125MHz ~ 591.875MHz
  • Transmitting Power: 10dBm / 15dB
  • Antenna: 1/4 Wavelength Wire Antenna
  • Polar Pattern: Omni-directional
  • Frequency Response: 20Hz ~ 20kHz
  • S/N ratio: 70dB
  • Equivalent Noise: 24dBA
  • Maximum SPL: 100dB
  • Dynamic Range: 76dB
  • Low Cut: 80Hz / 160Hz
  • Latency: <20ms
  • Audio Distortion: <0.5%
  • Consumption: Low Power: 300mW / High Power: 550mW
  • Battery: 2×AA Battery
  • External Power Supply: 5V/1A
  • Dimension: 107mm x 66mm x 26mm
  • Net Weight: 81g (Exclude Battery)
  • Working Temperature: 0°C ~ +50°C
  • Storage Temperature: -20°C ~ +60°C



Hand-held Transmitter HTX

  • Channels: 48 x 2
  • Group A Wireless Frequency: 568.125MHz ~ 579.875MHz
  • Group B Wireless Frequency: 580.125MHz ~ 591.875MHz
  • Transmitting Power: 10dBm / 15dBm
  • Antenna: PCB Antenna
  • Polar Pattern: Cardioid Pattern
  • Frequency Response: 100Hz ~ 14kHz
  • S/N ratio: 70dB
  • Equivalent Noise: 24dBA
  • Maximum SPL: 140dB
  • Dynamic Range: 116dB
  • Low Cut: 160Hz
  • Latency: <20ms
  • Audio Distortion: <0.5%
  • Consumption: Low Power: 280mW / High Power: 500mW
  • Battery: 2×AA Battery
  • Dimension: Φ 53.5mm (MAX) x 253mm
  • Net Weight: 340g
  • Working Temperature: 0°C ~ 50 °C
  • Storage Temperature: -20 °C ~ 60 °C


Receiver RX

  • Channels: 48 x 2
  • Group A Wireless Frequency: 568.125MHz ~ 579.875MHz
  • Group B Wireless Frequency: 580.125MHz ~ 591.875MHz
  • Receiver Sensitivity: <-95dBm
  • Antenna: 1/4 Wavelength Wire Antenna
  • S/N ratio: 70dB
  • Equivalent Noise: 24dBA
  • Latency: <20ms
  • Audio Distortion: <0.5%
  • Consumption: Dual Channel: 460mW / Single Channel: 260mW
  • Battery: 2×AA Battery
  • External Power Supply: 5V/1A
  • Dimension: 107mm x 66mm x 26mm
  • Net Weight: 87g (Exclude Battery)
  • Working Temperature: 0°C ~ +50°C
  • Storage Temperature: -20°C ~ +60°C
