AKG Mini Lavaliere Microphones 3 Pin Mini XLR (TA3F) for Wireless Body Pack Radio Transmitters

Regular price
£15.99
Wishlist Add to wishlistRemove to wishlist Compare Add to compareRemove to compare

Micronic Microphones AKG omni & unidirectional lavaliere microphones are a great price & supreme quality replacement. For use with all AKG body pack transmitters that use 3 pin mini XLR (TA3F) female connector.

Compatible with all 3 pin AKG body pack transmitters - Other brands using the same connector also work with these microphones.

Each lavaliere is built to high standard for use in TV, Film, Theatre productions, Studio, Church, Halls, Stage, Indoor & Outdoor Live Performances. Main differences are size, cable, directivity, sensitivity, impedance, frequency response, noise level. For each individual full specification look at charts in our pictures.

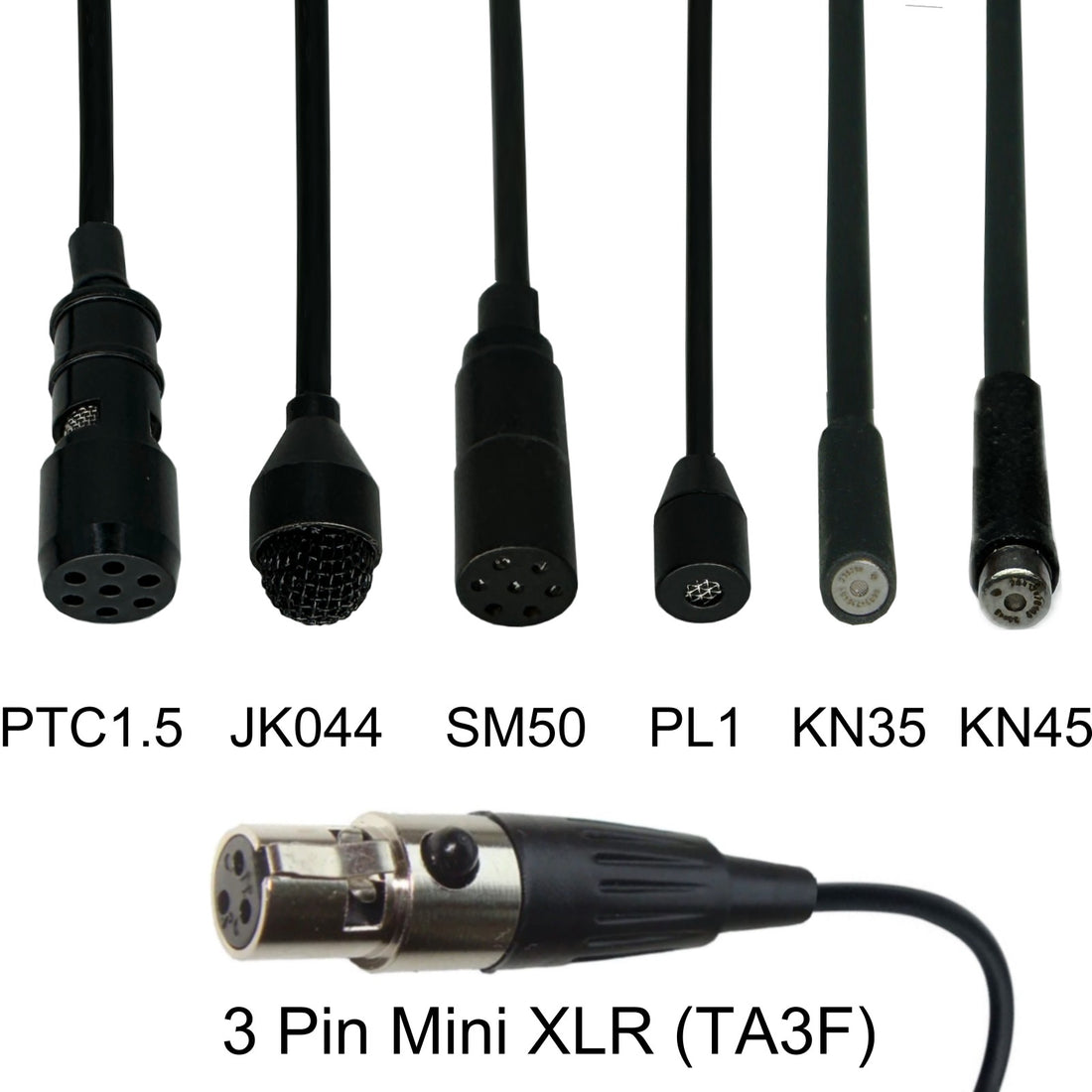

PTC1.5 Omni & unidirectional lavaliere is our cheaper model standard quality microphone capsule. 1.5 metre cable (1.9mm thick) 7mm diameter x 21mm length black metal (alloy) microphone enclosure. Supplied with metal clip, foam windshield & pouch available with omni (360º) & unidirectional (180º) pick up pattern. Impressive for the price.

JK-044 Omnidirectional lavaliere is our most popular mid range high quality microphone capsule. 1.2 metre cable (1.9mm thick) 7mm diameter x 13.5mm length black metal (alloy) metal enclosure with dome shaped grill. Supplied with metal rotatable clip, 2x foam windshields & pouch. Very impressive for the price.

PL1 miniature omnidirectional lavaliere is smaller with slightly clearer clarity microphone capsule than the 2 above. 1.2 metre cable length (1.7mm thick) 5mm diameter x 9mm length black metal (brass) enclosure. Supplied with plastic clip, foam windshield & pouch. Very impressive for the price.

SM50 professional omnidirectional (Sony) lavaliere withstands years of regular use & more sensitive with high quality clear clarity microphone capsule. 1.5 metre cable length (1.9mm thick) 6mm diameter x 18mm black metal (brass) enclosure. Supplied with metal clip, foam windshield & pouch. Amazing for the price as Sony equivalent cost over £150-£250.

KN35 professional Knowles omnidirectional lavaliere is our smallest sub miniature supreme quality microphone. Tailored for speech, high S/N performance, high resistance to mechanical shock, exceptionally low resistance to vibration with integral RFI suppression. Its high electroacoustic sensitivity and low noise make this microphone an excellent choice for all applications. Comparable to the most expensive lavalieres out there like Countryman and Sanken Cos costing £300-£500. 1.5 metre cable length (1.7mm thick) 2.57mm diameter x 10mm length black silicon sleeved enclosure. Supplied with plastic clip, foam windshield & pouch. Unbelievable for the price and you will not be disappointed.

KN45 professional Knowles unidirectional sub miniature supreme quality lavaliere microphone. Exactly as above but with superb directional capability to reject feedback and reduce unwanted background sounds when in noisy environment or performing live. 1.5 metre cable length (1.7mm thick) 2.57mm diameter x 10mm length silicon sleeved enclosure. Supplied with plastic clip, foam windshield & pouch. Unbelievable for the price and you will not be disappointed.

These are all made in the UK by Micronic Microphones using high quality microphone capsules, pure copper screened flexible microphone cable and 3 pin mini XLR connector.

Postage and delivery

Specifications

PTC1.5
Miniature Lavalier Tie Clip Microphone
Device type: Back Electret Condenser
Cable type: Screened 2mm diameter
Sensitivity: -45dB/³bar (Open Circuit)
Frequency response: 50Hz - 18kHz
Length / Height, external: 10mm
Durable & comfortable to wear
Voltage supply DC: 1.5v - 10v
Microphone diameter: 8mm
Transducer Function: Sound
Directivity: Omnidirectional
Removable adjustable metal clip
Impedance: 1000 Ohm
Length, lead: 1.5 metre
Colour, base: Black
Overall Weight:15g

JK-044
Capsule: Back Electret Condenser
Polar pattern: Omnidirectional
Sensitivity: -45dB/³bar (Open Circuit)
Max sound pressure: 130 dB
Frequency response: 20Hz - 20kHz
Cable type: Screened 2mm diameter
Cable length: 1.2 metre
Microphone length: 13mm
Microphone diameter: 7mm
Operating voltage: 2v - 10v DC
Removable adjustable metal clip
Impedance: 1.2k Ohm
Colour, base: Black
Weight: 15 grams

PL1
Ultra Miniature Lavalier Tie-Clip Microphone
Signal to noise ratio: 63dB (1kHz at 1Pa)
Device type: Back Electret Condenser
Cable type: Screened 2mm diameter
Sensitivity: -36dB/³bar (Open Circuit)
Frequency response: 50Hz-20Khz
Operating voltage: 1.5v-10v
Microphone diameter: 4mm
Microphone  Length: 10mm
Directivity: Omnidirectional
Sound level SPL: 110dB
Microphone Weight <1g
Lead length: 1.2 metre
Impedance: 1K Ohm
Overall Weight:13.4g
Removable plastic clip
Colour: Black

SM50
Capsule: Sony Back Electret Condenser
Polar pattern: Omnidirectional
Sensitivity: -40dB/³bar (Open Circuit)
Max sound pressure: 120 dB
Frequency response: 20Hz - 20kHz
Cable type: Screened 2mm diameter
Cable length: 1.5 metre
Microphone length: 18mm
Microphone diameter: 6mm
Operating voltage: 2v - 10v DC
Removable adjustable metal clip
Impedance: 1.5k Ohm
Colour, base: Black
Weight: 18 grams

KN35
Capsule: Knowles Back Electret Condenser
Polar pattern: Omnidirectional
Sensitivity: -53dB/³bar (Open Circuit)
Max sound pressure: 130 dB
Frequency response: 4KHz - 12kHz
Cable type: Screened 2mm diameter
Cable length: 1.5 metre
Microphone length: 10mm
Microphone diameter: 2.57mm
Operating voltage: 1.3v - 10v DC
Removable plastic clip
Impedance: 4k Ohm
Colour, base: Black
Weight: 8 grams

KN45
Capsule: Knowles Back Electret Condenser
Polar pattern: Unidirectional
Sensitivity: -52dB/³bar (Open Circuit)
Max sound pressure: 130 dB
Frequency response: 4KHz - 12kHz
Cable type: Screened 2mm diameter
Cable length: 1.5 metre
Microphone length: 10mm
Microphone diameter: 2.57mm
Operating voltage: 1.3v - 10v DC
Removable plastic clip
Impedance: 4k Ohm
Colour, base: Black
Weight: 8 grams

Multiple Discounts

Buy 6 or more with 10% discount & automatically applied in checkout. More discount available on multiples of 10 & 20 pieces - email micronic@live.co.uk for quote / lead time. It must be multiple of same microphone & does not apply to any other product in our range.
