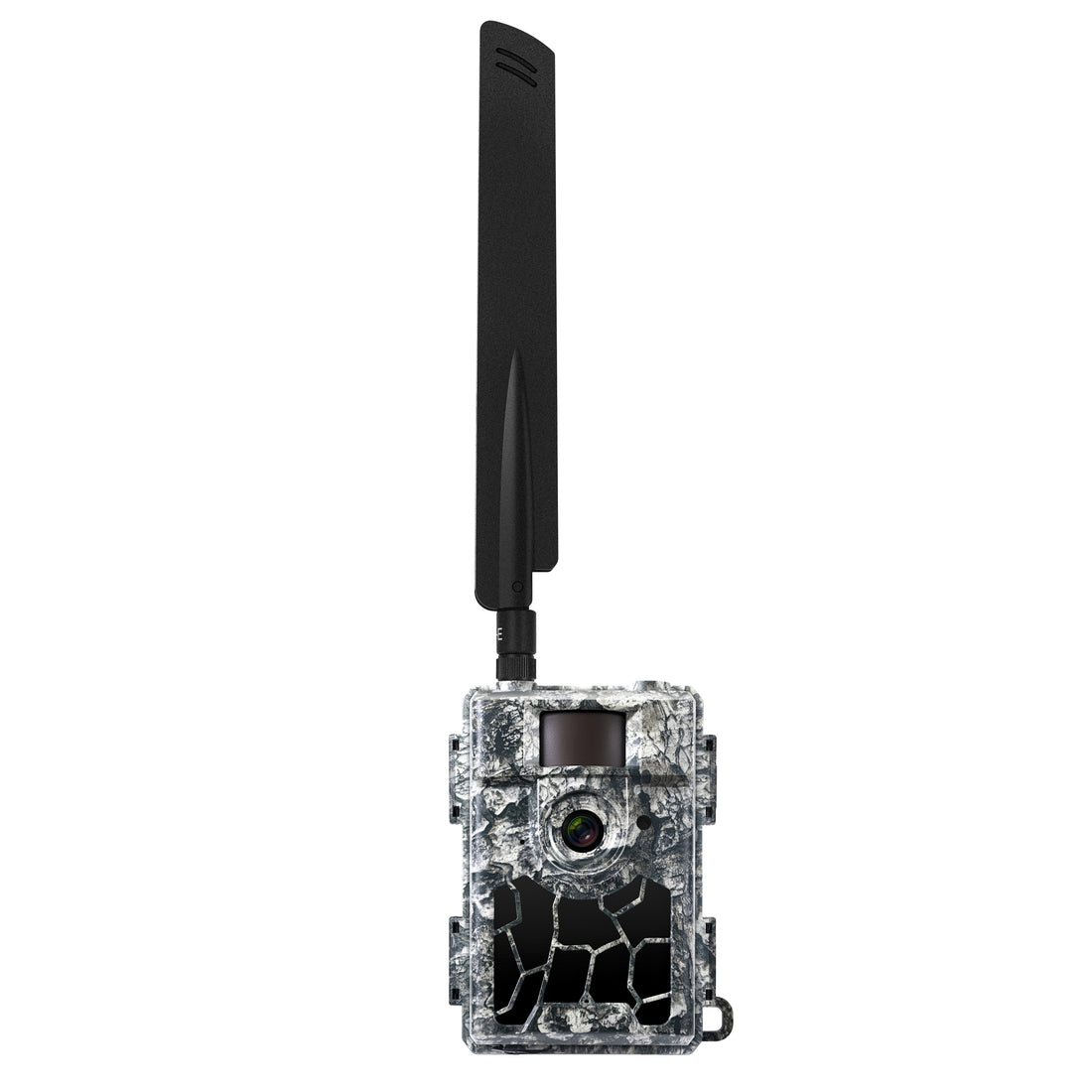

The 5.8CS miniature size 24MP trail camera with 4G LTE smartphone app and GPS tracker. Built in 2.4" LCD screen to view images and video recordings with access to menu for camera settings. Supplied with pre-loaded Mega sim card ready to use out of box, connecting to 4G networks wherever it is used. Camera has 8MP/12MP/24MP photo image size and 1080p full HD video. PIR triggered in 0.4 second in sleep mode up to 20 metres distance and 60º angle. Remotely view images and videos, set image size, multi-shot, sensitivity, working timer, notifications and much more on Trailcam Ace app. Compact size only 12.5cm height x 9cm width x 5cm depth.
Supplied with mega sim card that operates on any network in UK/EU & requires subscription fee on app. Starting from $9.99 per month & cheaper than using other sim card packages. Fee includes 4G network connection and live stream video option, unlimited option is $19.99 per month. App offers free 30 day subscription but not include live video streaming. The mega sim works anywhere you take it and connects to different networks.
Powered on 8 AA batteries lasting 6 months on standby. Optional alkaline, NI-MH or Lithium AA batteries can be used. Also power on external 12v power source, this can be battery / mains power supply or battery solar panel.
We offer external power supply options to work with this camera on our website. Copy and paste options below into our search bar above to view and add to basket.
12v mains UK 3 pin power supply - 12v 1A PSU
12v 5000mA Battery / solar panel - SP200
12v 1000mA Battery / solar panel - SP100
Receive instant push notification alerts when triggered with live view video and sound. Built in GPS tracker to pin point its location if stolen or moved. IP66 water-proof, dust-proof and frost-proof operating in temperatures -25ºC to +60ºC to use in extreme conditions.
Operate on app called 'Trailcam Ace' on Android and iOS operating systems. Register account for free 30 day cloud storage and receive 100 HD photo's and video clips, push notification alerts when triggered and GPS location. Please note when 100 clips are used you will require to upgrade account. Packages from $4.99 monthly for basic package to $19.99 for supreme package. This covers all costs involved and no need to contact local 4G network providers. To stream live view video from start requires upgrade to supreme package and not included in free trial period.
Compatible on 4G networks in United Kingdom, Europe, Australia and South Africa.
EC25-E:
FDD LTE: B1/B3/B5/B7/B8/B20
TDD LTE: B38/B40/B41
WCDMA:B1/B5/B8
GSM: 900/1800
5.8CS Key Attributes
|
Place of Origin
|
United Kingdom
|
|
Sensor Element Type
|
CMOS
|
|
Brand Name
|
WILLFINE
|
|
Model Number
|
5.8CS
|
|
Screen Size
|
2.4 inches
|
|
Memory Card Type
|
SD Card
|
|
Optical Zoom
|
Fixed Focus
|
|
Image Stabilization
|
NO
|
|
MegaPixel
|
24MP
|
|
Special Feature
|
Weather-resistant
|
|
Image Sensor
|
5 / 8 / 12 / 24 Mega Pixels Colour CMOS
|
|
IR arrange
|
20m / 65 feet
|
|
Password Access Protected
|
On/Off; 7 digits
|
|
Video resolution
|
1080p @30fps
|
|
Video Format
|
mp4
|
|
trigger speed
|
0.4sec
|
|
SD Card auto cycling
|
On/Off
|
|
Waterproof
|
IP66
|
|
IR LED
|
60pcs 940nm Black Lights
|
|
Dimensions
|
125mm x 90mm x 50mm
|
5.8CS Specifications
|
Effective Pixels
|
2688x1520; 16:9
|
|
Day/Night Mode
|
Yes
|
|
IR Setting
|
60pcs; 940nm-IR LED
|
|
Operating Keys
|
7
|
|
Lens
|
DFOV=60° F=2.0, Auto IR-Cut (at night)
|
|
LCD Screen
|
2.4”TFT, RGB
|
|
Audio
|
Microphone
|
|
Wireless Module
|
4G LTE Cat.1 module
2G & 3G networks supported
|
|
PIR Angle
|
45° / 80°
|
|
PIR Distance
|
20m
|
|
Picture Size
|
8MP = 3840x2160
12MP = 4608x2592
24MP = 6144x3456
|
|
Shooting Numbers
|
1P-5P
|
|
Video Resolution
|
HD (1280x720)
FHD (1920x1080)
|
|
Video Record Length
|
3s - 10s
|
|
Trigger Time
|
0.4s
|
|
Trigger Interval
|
4s-7s
|
|
Camera + Video
|
Yes
|
|
Device Serial No.
|
Yes
|
|
Time Lapse
|
Yes
|
|
GPS
|
Yes
|
|
Memory
|
SD Card (8GB – 32GB)
|
|
SD Card Cycle
|
ON/OFF
|
|
Operation Power
|
Battery: 12V; DC: 12V-2A
|
|
Auto Power Off
|
Camera automatically power off
in 3 mins if no keypad touched.
|
|
Sending Protocol
|
HTTP(S)
|
|
Interface
|
SIM Card, SD Card, DC Port, Type-C Port
|
|
Operating Temperature
|
-20°C to 55°C
|
|
Storage Temperature
|
-25°C to 60°C
|
|
Operation Humidity
|
5%-90%
|
|
Waterproof Spec
|
IP66
|
|
Certification
|
CE FCC RoHs
|
