Model
|
D77W
|
|
Video
|
Sensor
|
2.0 megapixel 1/2.8" SONY307 star light CMOS
|
|
Video resolution
|
Main stream: 1920x1080@18fps
Sub stream: 640x352@25fps, 320x176@25fps
|
|
Video compression
|
H.264 / H.265
|
|
Lens
|
2.7-13.5mm 5X optical zoom auto focus lens
|
|
View angle
|
96°~26.2°
|
|
Night vision
|
22pcs infrared LEDs, night vision distance 20m
|
|
Audio
|
Audio compression
|
G.726/G.711
|
|
Audio code rate
|
Rate adaptive
|
|
Audio input
|
Built-in MIC, support voice monitor
|
|
Alarm
|
Motion detecting alarm
|
Can set 4 independent detection region (1-100 sensitivity can be set)
|
|
Alarm linkage
|
Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card, Alarm mobile phone message push
|
|
Alarm recording
|
Support Micro SD card and PC client linkage alarm recording
|
|
Network
|
Wireless
|
IEEE 802.11 b/g/n
|
|

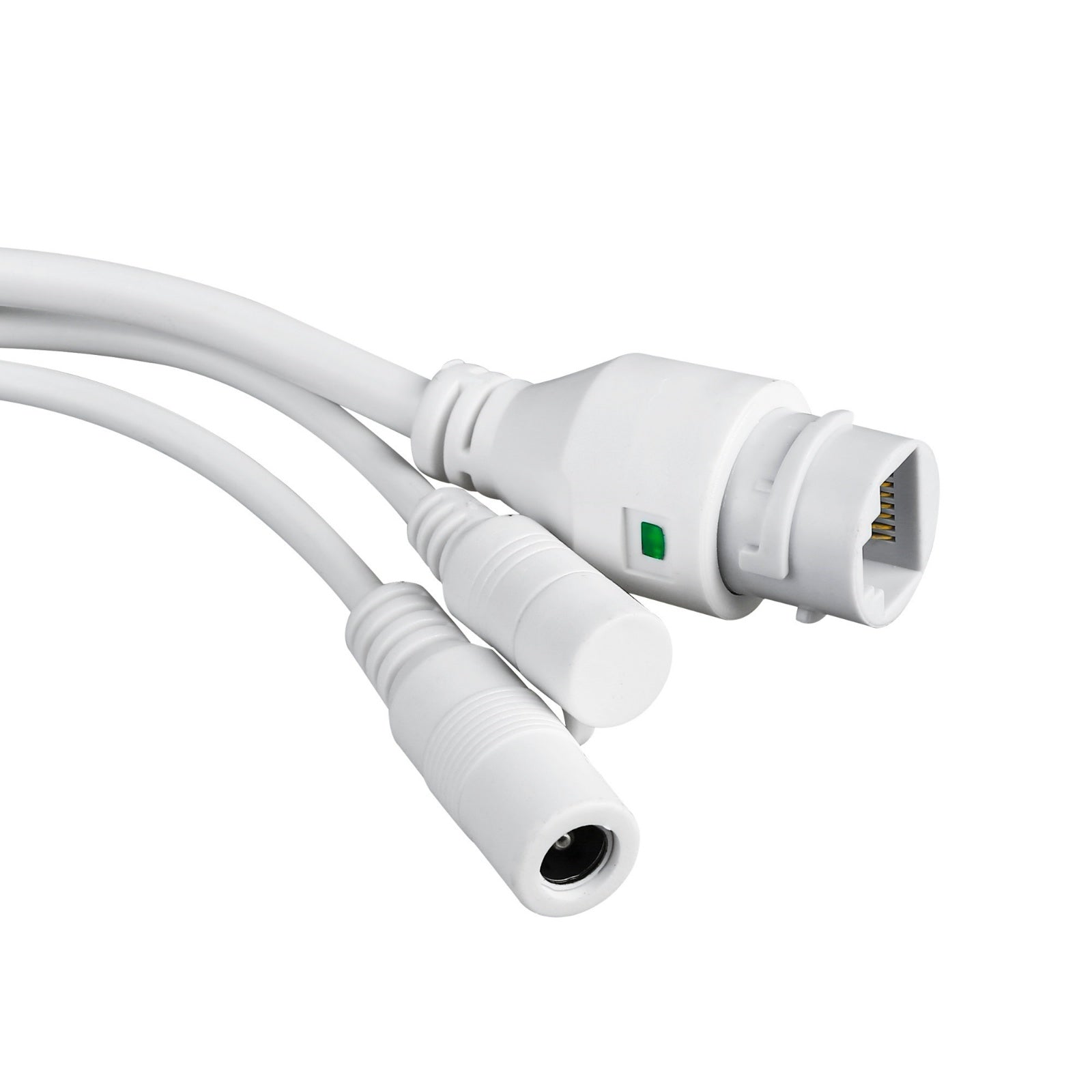

Ethernet
|
RJ45 Ethernet
|
|
Onvif protocol
|
Support ONVIF 2.4(backward compatible)
|
|
Storage
|
Micro SD card
|
Support up to 128G micro SD card
|
|
Recording mode
|
Alarm record, timing record,
|
|
Video playback
|
Support APP, IE browser, remote client play and download the video
|
|
PTZ
|

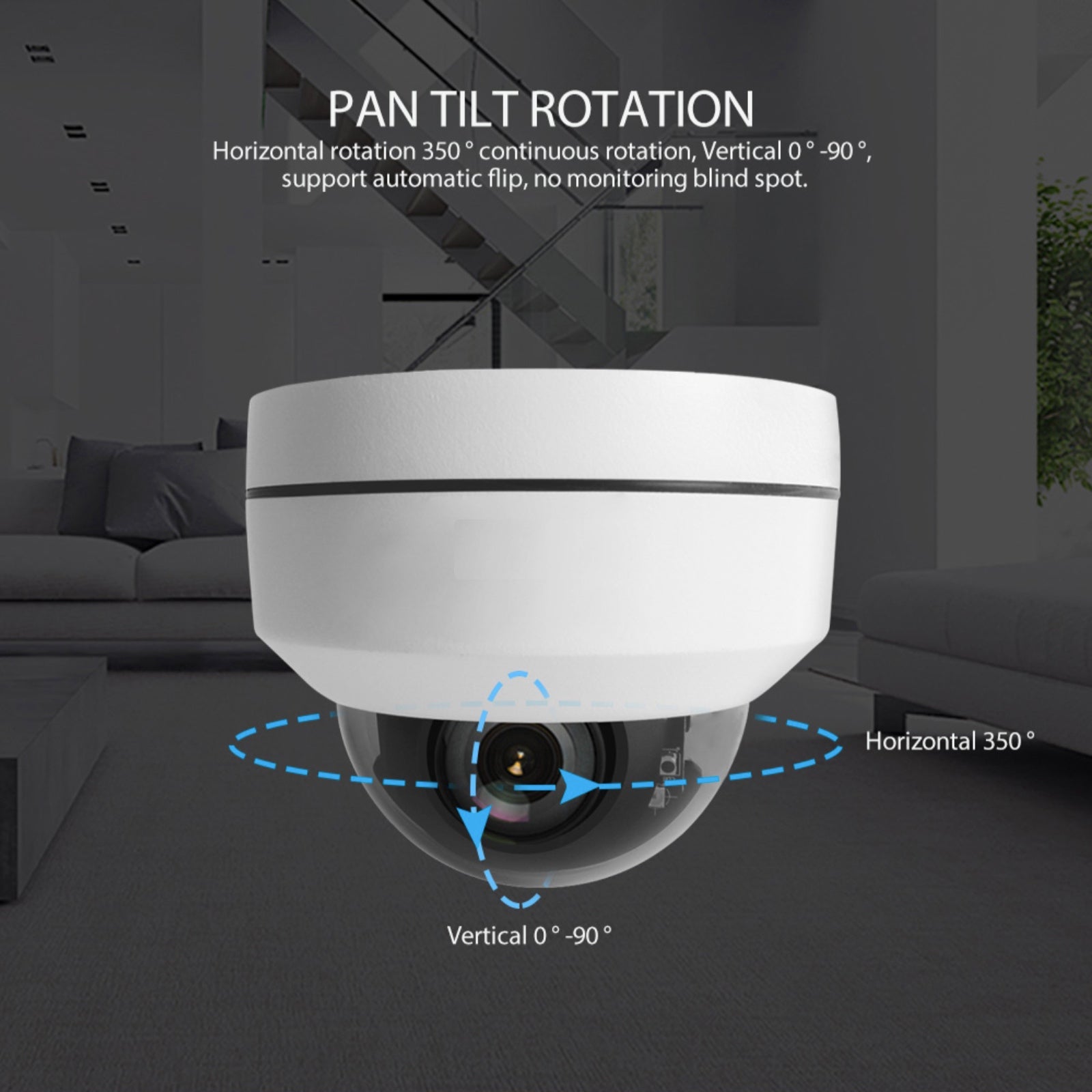

Rotation angle
|
Horizon: 0~355°, Vertical: 0~90°
|
|
Horizontal speed
|
10°~30°/S
|
|
Vertical speed
|
8°~25°/S
|
|
Preset
|
Support 8 preset points
|
|
General specification
|
Power
|
DC12V 1A
|
|
Operating environment
|
Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%~90%, non-condensing
|
|
Product size
|
113mm×113mm×113mm(L×W×H)
|
|
Product weight
|
0.45kg
|
|
Package size
|
148mmx148mmx148mm(L×W×H)
|
|
Package weight
|
0.7kg
|
|
Reset button
|
Support
|
